Short Specifications

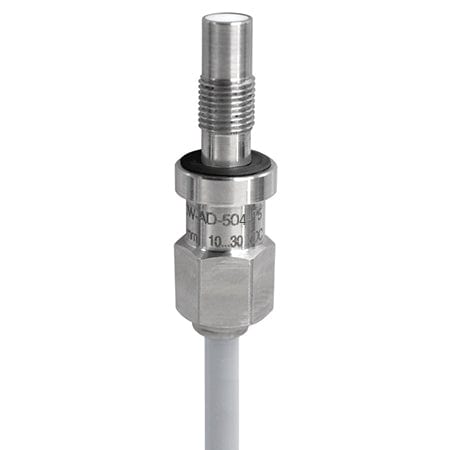

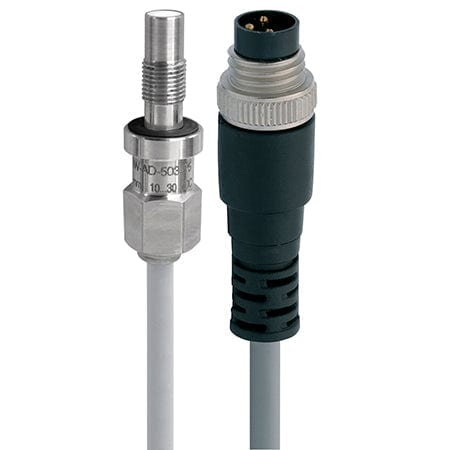

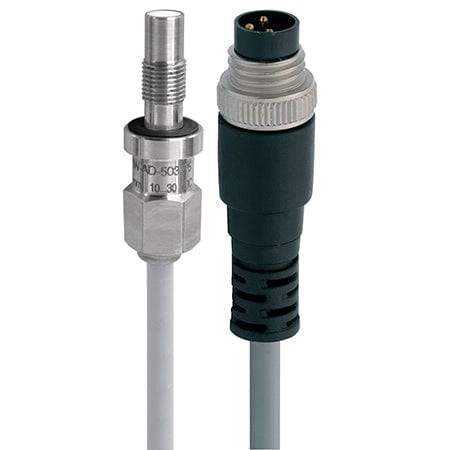

DW-AD-503-P5
| Operating range | 1 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 500 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M5 |
| Enclosure rating | IP 68 |
| Housing material | Stainless-steel DIN 2.4711 |
| Temperature range | -25...+100°C |
| Sensor Height | 27 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
