Short Specifications

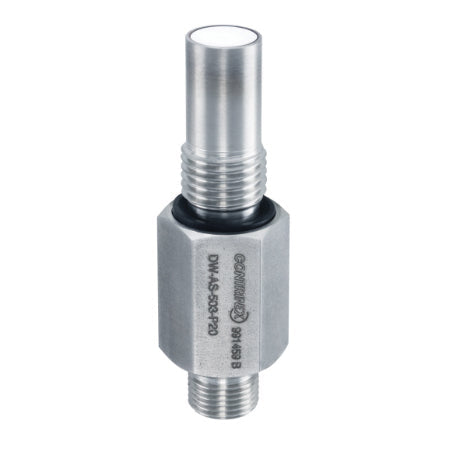

IDWE-P20MC-NMS-A0
| Operating range | 0...3 mm |
| Switching frequency max. | 125 Hz |
| Supply voltage | 18...30 |
| Operating pressure [bar] | ≤ 500 bar |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Repeatability | < 0.008 mm |
| Connection | M12 4-pin |
| Housing size [mm] | M14 |
| Enclosure rating | IP 68 |
| Housing material | Stainless-steel V4A |
| Resolution | 4.5 µm |
| Temperature range | -25...+100°C |
| Sensor Height | 65 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...3.3 mm |
