Short Specifications

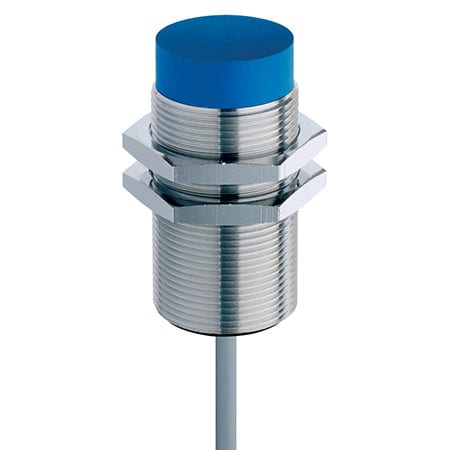

DW-AD-512-M30
| Operating range | 40 mm |
| Switching frequency max. | 65 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Normally Closed (NC) |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 60 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
Downloads
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Estimated Delivery Time 2-3 weeks
