DW-AD-703-M30-303
| Operating range | 10 mm |
| Switching frequency max. | 250 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 40 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 50 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|

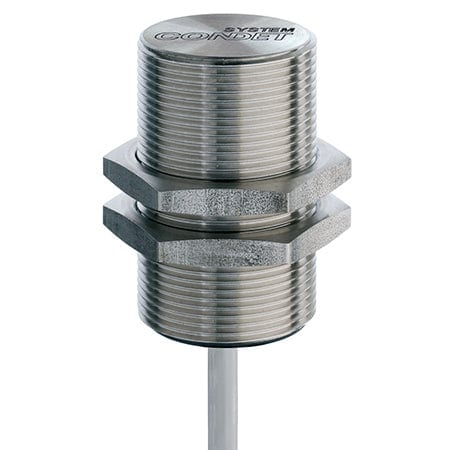

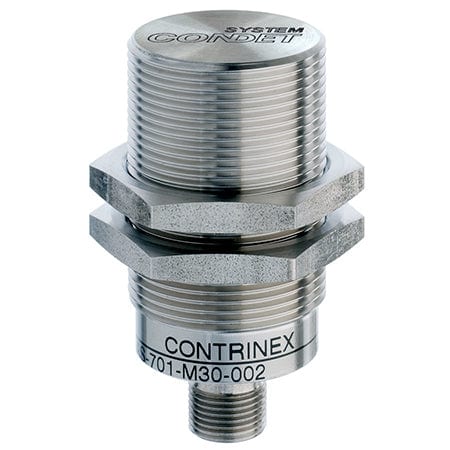

Inductives Sensor Extreme-Full-Inox-Series-700-M30-Embeddable-10-mm DW-AD-703-M30-303
Extreme Full Inox Series 700 M30 Embeddable 10 mm
SKU: DW-AD-703-M30-303
Regular price
CHF 129.00
Secure Checkout
Need help? Click here to contact an expert
