IDWE-M30MP-NMS-A0
| Operating range | 0...20 mm |
| Switching frequency max. | 125 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Repeatability | < 0.015 mm |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Resolution | 5 µm |
| Temperature range | -25...+70°C |
| Sensor Height | 73.5 mm |
| Mounting | Quasi-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...22 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|

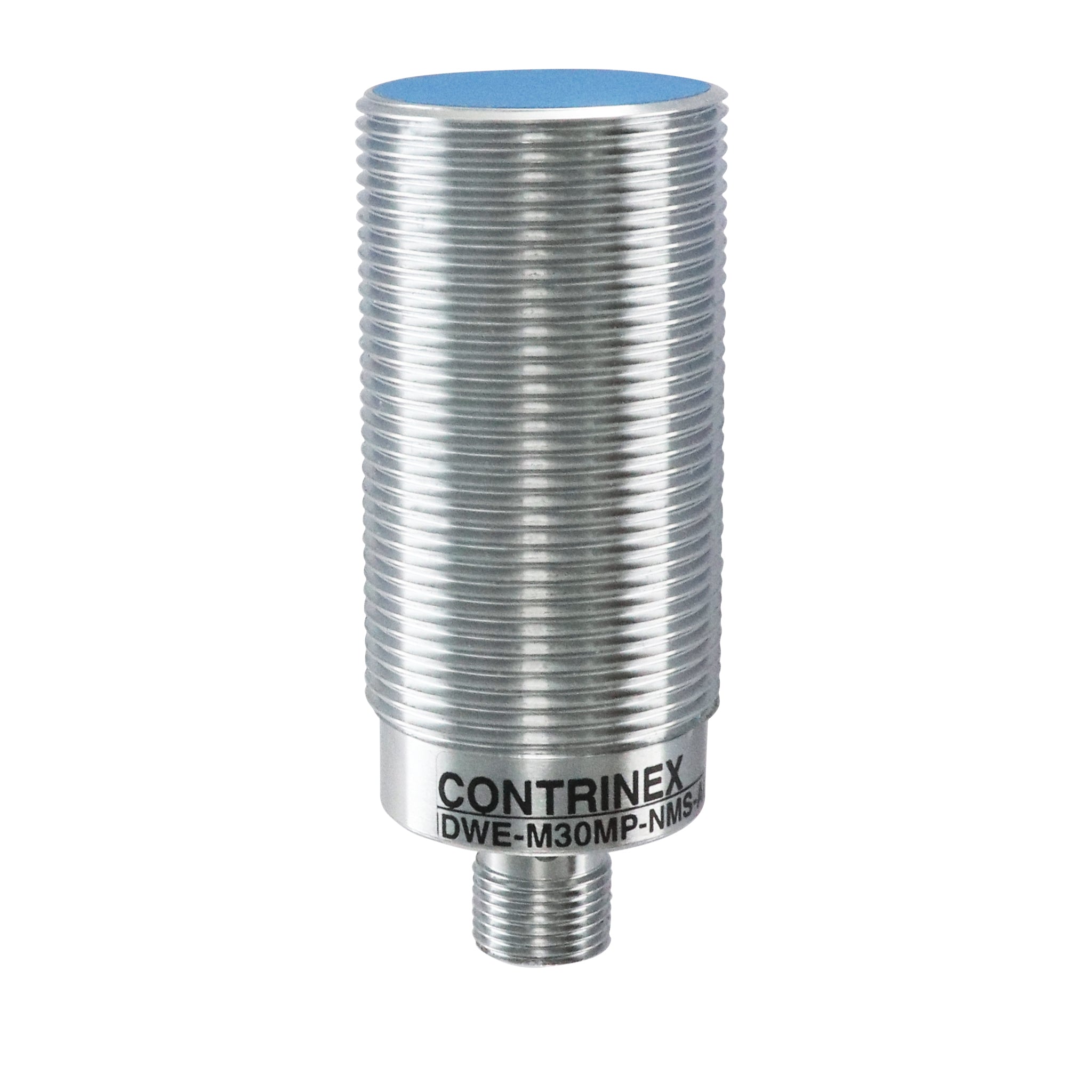

Inductives Smart Sensor DMS-Smart-020-mm IDWE-M30MP-NMS-A0
DMS Smart 0...20 mm
SKU: IDWE-M30MP-NMS-A0
Regular price
1.068,00 kr
Secure Checkout
Need help? Click here to contact an expert
