LLR-D04MA-NMS-400
| Operating range | 0...500 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | Emitter |
| Output | IO-Link |
| Sensitivity adjustment | No |
| Connection | M8 3-pin |
| Housing size [mm] | Ø 4 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+65°C |
| Light source | LED, red 680 nm |
| Interface | IO-Link |
| Operating principle | Through-beam |
| Sensing range max. | 0...600 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|
Photoelectrics Sensor Miniature-Through-beam-04-0500-mm-Stainless-steel-V2A-LED-red-680-nm LLR-D04MA-NMS-400

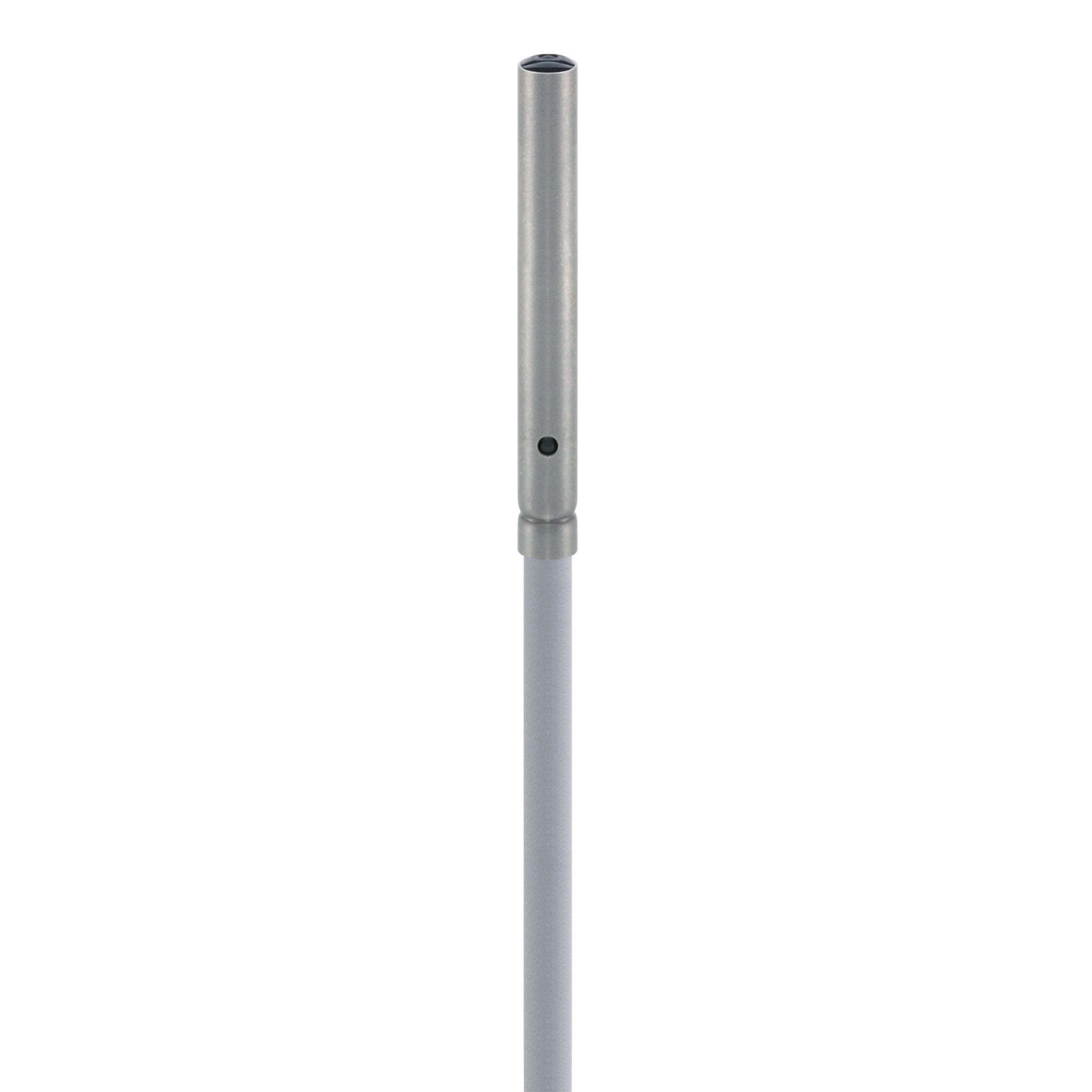

Miniature Through beam Ø 4 0...500 mm Stainless steel V2A LED, red 680 nm
SKU: LLR-D04MA-NMS-400
Regular price
485,00 kr
Ready to ship tomorrow
Standard delivery approx. 4–6 working days
Secure Checkout
Need help? Click here to contact an expert
