DW-AD-519-M30
| Operating range | 0...40 mm |
| Switching frequency max. | 100 Hz |
| Supply voltage | 10...30 |
| Polarity | Analog |
| Output | Voltage + Current |
| Connection | PUR, 2 m, 4 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 60 mm |
| Mounting | Non-embeddable |
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Inductives Sensor Analog-output-Extra-Distance-Series-500-M30-Non-embeddable-040-mm-05-V-15-mA DW-AD-519-M30

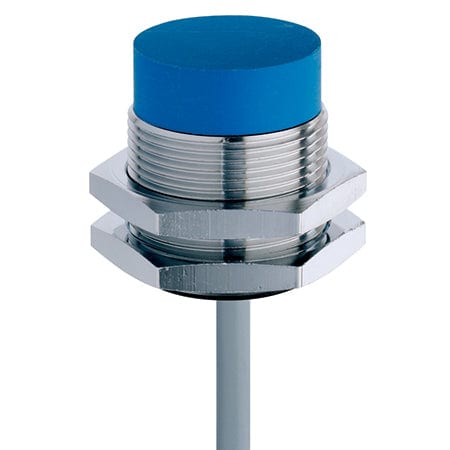

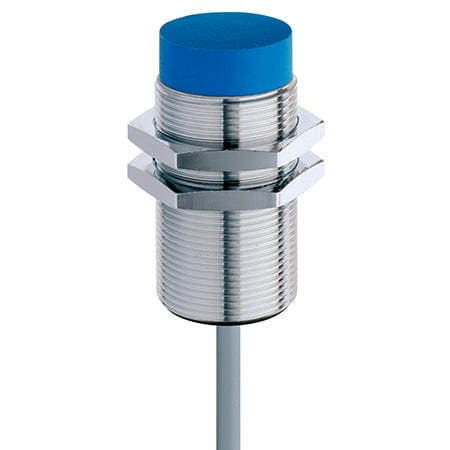

Analog output Extra Distance Series 500 M30 Non embeddable 0...40 mm 0...5 V + 1...5 mA
SKU: DW-AD-519-M30
Regular price
€141,20
Secure Checkout
Need help? Click here to contact an expert
DW-AD-519-M30
| Operating range | 0...40 mm |
| Switching frequency max. | 100 Hz |
| Supply voltage | 10...30 |
| Polarity | Analog |
| Output | Voltage + Current |
| Connection | PUR, 2 m, 4 wire |
| Housing size [mm] | M30 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+70°C |
| Sensor Height | 60 mm |
| Mounting | Non-embeddable |
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Inductives Sensor Analog-output-Extra-Distance-Series-500-M30-Non-embeddable-040-mm-05-V-15-mA DW-AD-519-M30
