Short Specifications

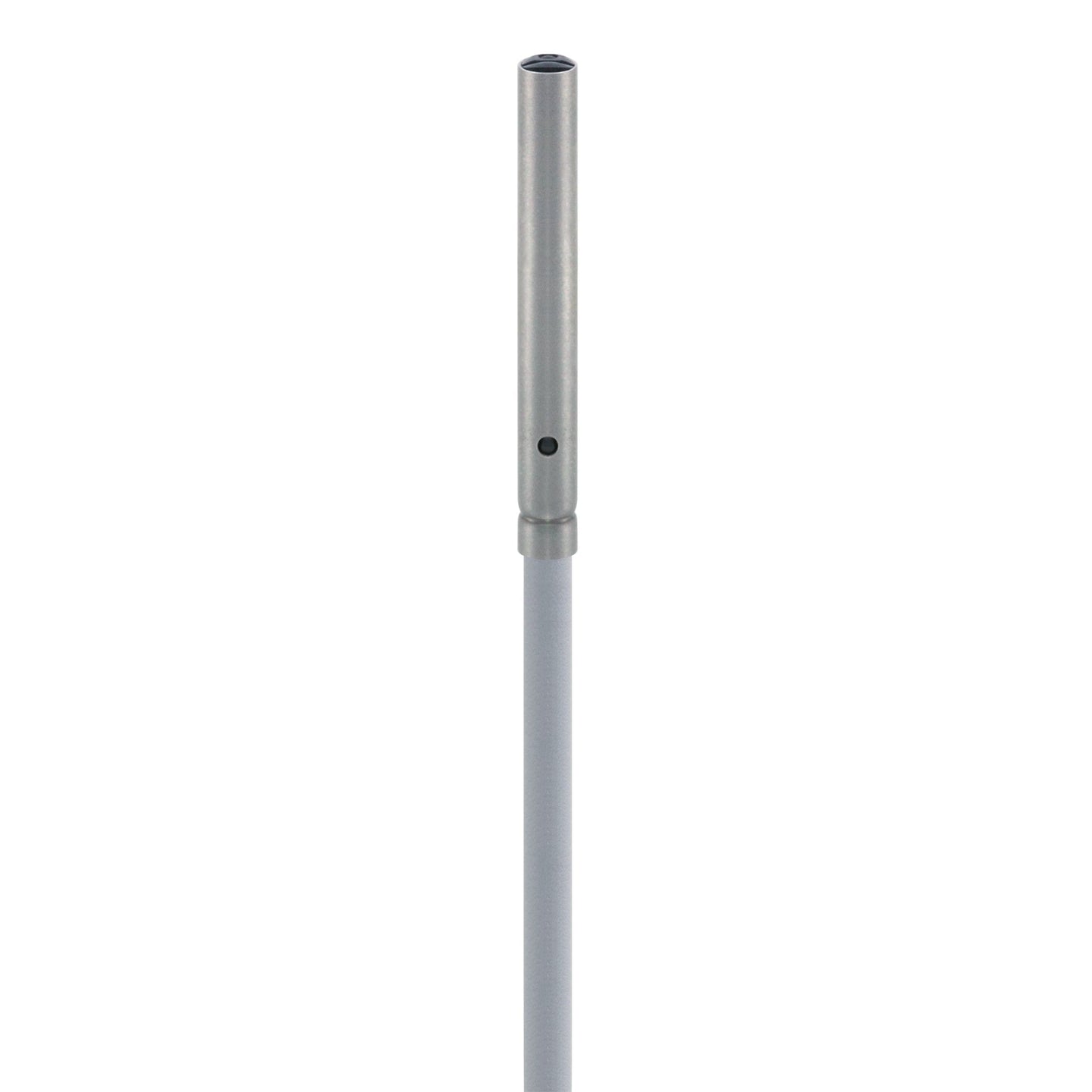

LTR-D04MA-WXK-403
| Operating range | 0...100 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Light-on + Teach input |
| Sensitivity adjustment | Teach-in |
| Connection | PUR, 2 m, 4 wire |
| Housing size [mm] | Ø 4 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustm | 20...120 mm |
| Temperature range | -25...+65°C |
| Light source | LED, red 680 nm |
| Interface | IO-Link |
| Operating principle | Diffuse |
| Sensing range max. | 0...120 mm |
Downloads
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Estimated Delivery Time 2-3 weeks
