DNV-APPROVED* FOR SHIPS, PORTS AND OFFSHORE

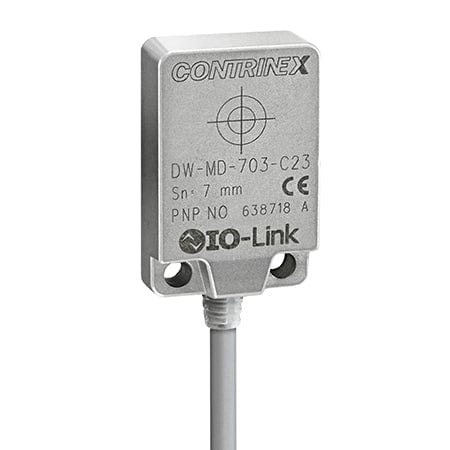

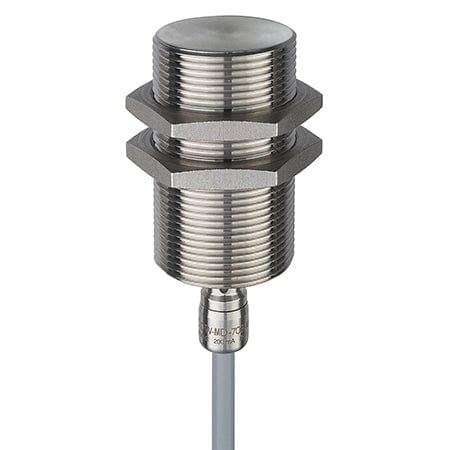

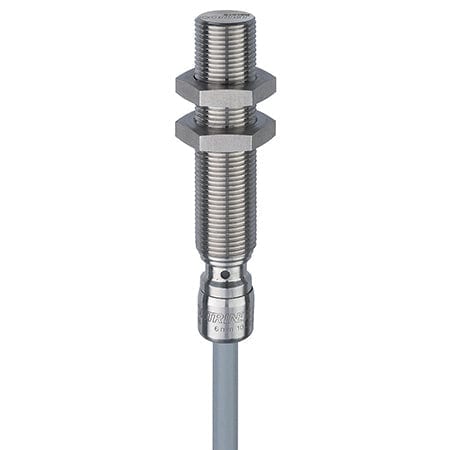

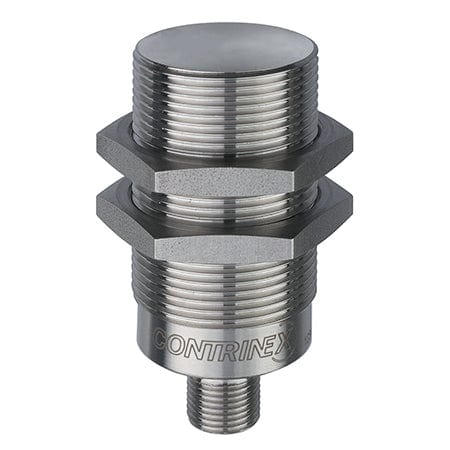

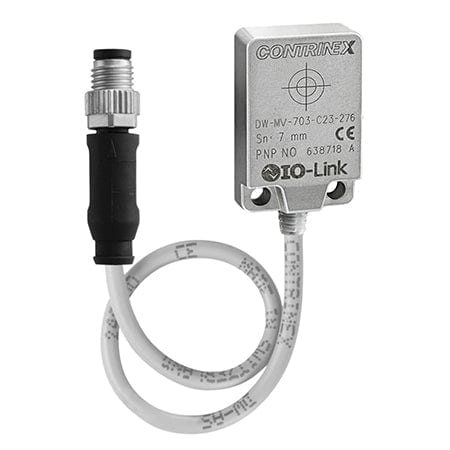

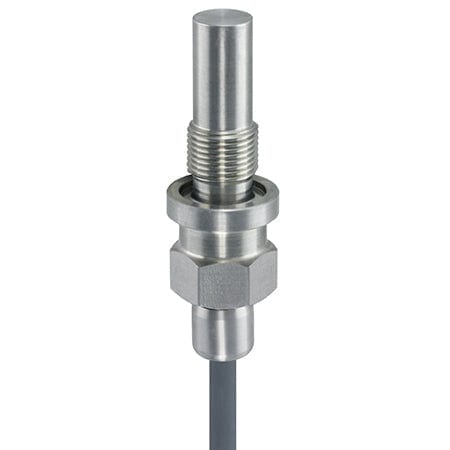

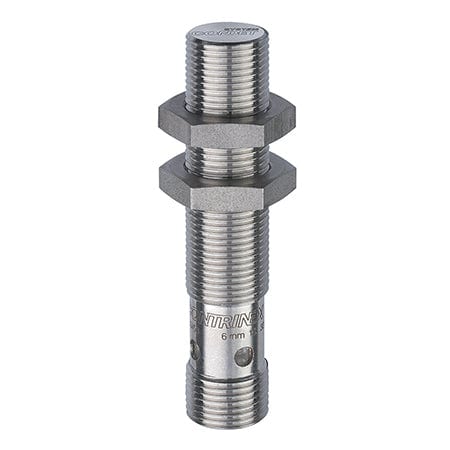

For 20 years, sensors made by Contrinex have proved their reliability in ships, ports and offshore. The Maritime range of embeddable inductive sensors, certified by DNV, offers unrivalled performance features based on Full Inox technology. With a one-piece housing in V4A/AISI 316L stainless steel and an enclosure rating of IP68/IP69K, they are not only impervious, but also corrosion-proof and resistant to salt water. Their EMC protection also meets specific maritime requirements, particularly with regard to power supply variations and low frequency immunity. They offer the longest service life of any inductive sensor on the market, even in the harshest marine environments. The maximum operating pressure is 80 bar or 500 bar (peak 800 bar) for P12G high-pressure types. Depending on sensor size (M12, C23, M18 or M30), operating distances of 6, 7, 10 or 20 mm are available. In the PNP version, sensors also include an IO-Link interface for point-to-point communication with the controller of the system.

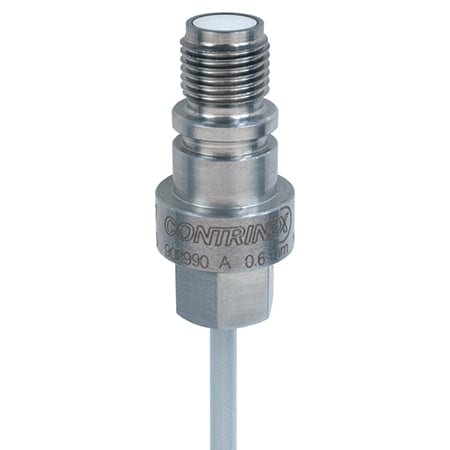

The range also includes DNV-approved M10 types with Classics technology.

Other ranges without DNV certification are also recommended for use in maritime environments: Extreme, Washdown , Analog Output, Basic C44

Key advantages: GL approved, class DNVGL-CG-0339, Extremely rugged sensors, fit for Industry 4.0, Special EMC protection, Resistant to corrosion and salt water, Impervious, enclosure rating IP68/IP69K, Temperature range –25…+85°C / –13…+185°F, Full Inox types: one-piece stainless-steel housing (V4A/AISI 316L), factor 1 on steel and aluminum, Pressure-resistance available up to 500 bar (800 bar peak), IO-Link interface
