DW-AD-643-M8
| Operating range | 3 mm |
| Switching frequency max. | 4500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | M8 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | 0...+60°C |
| Sensor Height | 35 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE Certificate |
|
| UKCA Certificate |
|

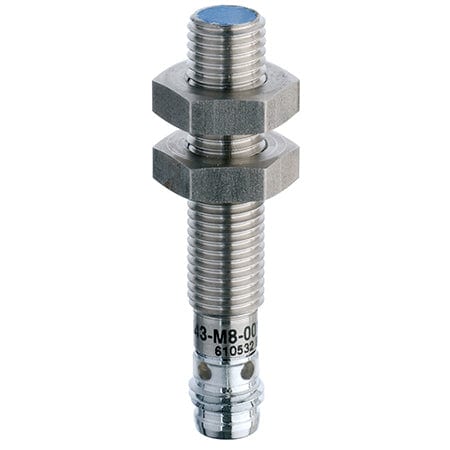

Inductives Sensor Basic-Classics-Series-600-M8-Embeddable-3-mm DW-AD-643-M8
Basic Classics Series 600 M8 Embeddable 3 mm
SKU: DW-AD-643-M8
Regular price
204.00 NIS
