ISHR-C23MP-NMS-A0
| Operating range | 10...300 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Sensitivity adjustment | IO-Link only |
| Connection | M8 4-pin |
| Housing size [mm] | 21.5 x 33 (C23) |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustment | 30...300 mm |
| Temperature range | -25...+65°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | IO-Link |
| Operating principle | Background suppression |
| Sensing range max. | 10...330 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Photoelectrics Smart Sensor Basic-Smart-Background-suppression-10300-mm-Stainless-steel-V2A-IO-Link-only-Pinpoint-LED-red-640-nm ISHR-C23MP-NMS-A0

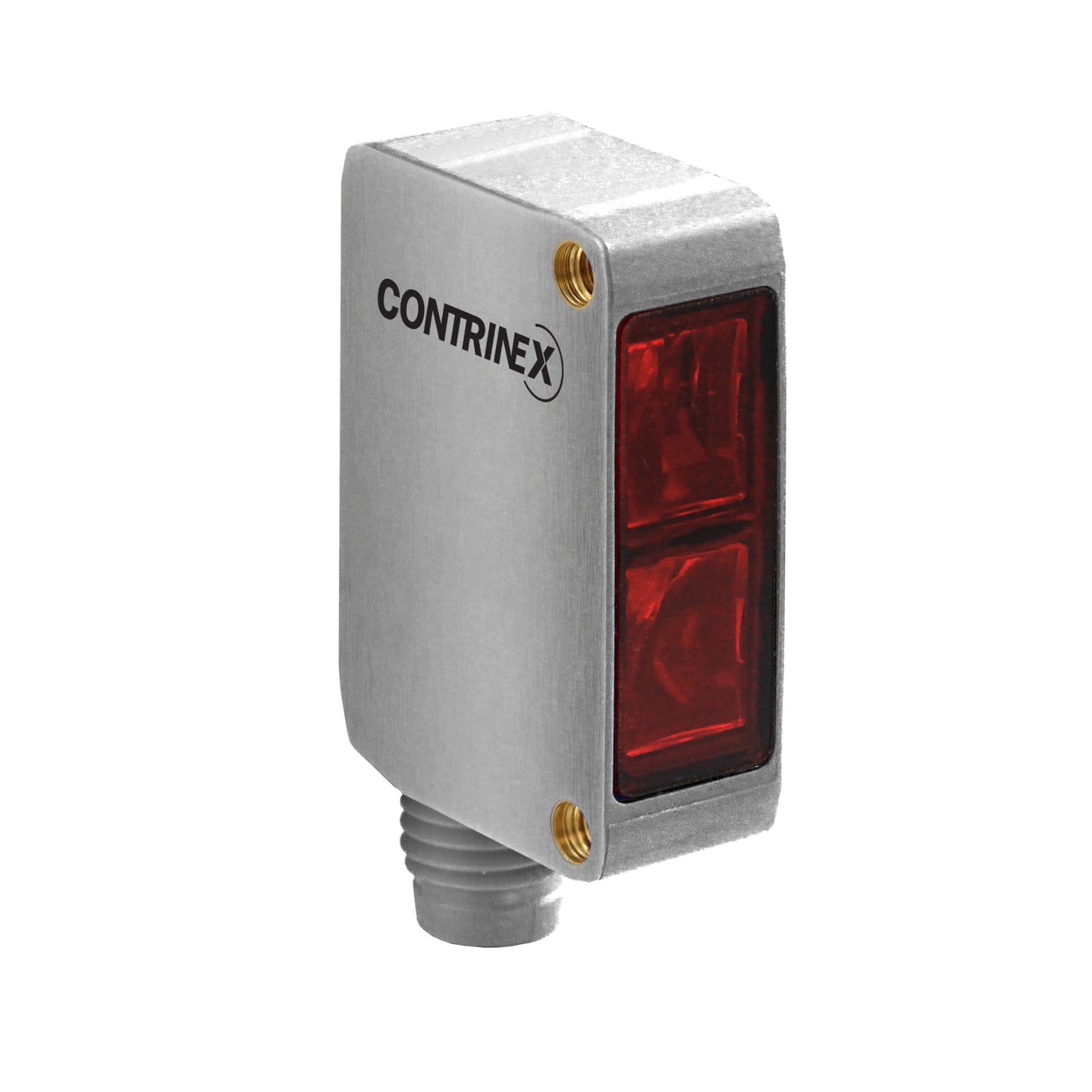

Basic Smart Background suppression 10...300 mm Stainless steel V2A IO Link only Pinpoint LED, red 640 nm
SKU: ISHR-C23MP-NMS-A0
Regular price
₩248,000
