ISTR-M18MP-NMS-A0
| Operating range | 5...1000 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Sensitivity adjustment | IO-Link only |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustment | 30...1200 mm |
| Temperature range | -25...+65°C |
| Light source | LED, red 630 nm |
| Interface | IO-Link |
| Operating principle | Diffuse |
| Sensing range max. | 5...1100 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|

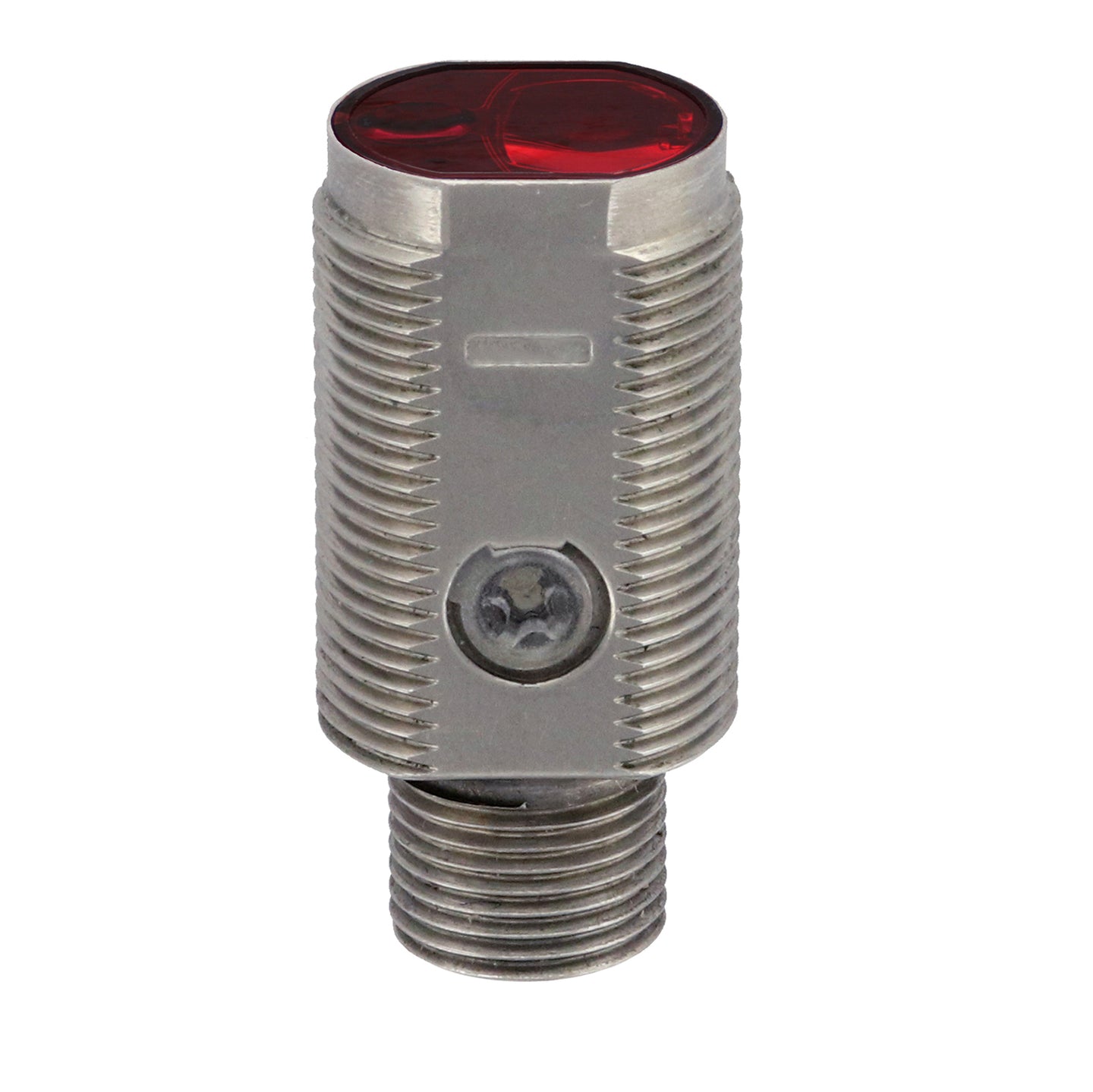

Photoelectrics Smart Sensor Basic-Smart-Diffuse-51000-mm-Stainless-steel-V2A-IO-Link-only-LED-red-630-nm ISTR-M18MP-NMS-A0
Basic Smart Diffuse 5...1000 mm Stainless steel V2A IO Link only LED, red 630 nm
SKU: ISTR-M18MP-NMS-A0
Regular price
₩141,000
Secure Checkout
Need help? Click here to contact an expert
