RLS-1183-020
| Operating range | 31 mm |
| Operating Frequency | 13.56 MHz |
| Supply voltage | 14...32 |
| Standard | ISO/IEC 15693 |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+80°C |
| Mounting | Non-embeddable |
| Interface | ContriNET x RFID |
| Product series | Read/write module |
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| FCC certificate |
|
| IC certificate |
|
| Application notes URL |
|
| DLL |
|
| Function blocks |
|
| Softwares |
|
RFID RFID 1356-MHz-Read-write-module-Basic-M18-mm RLS-1183-020

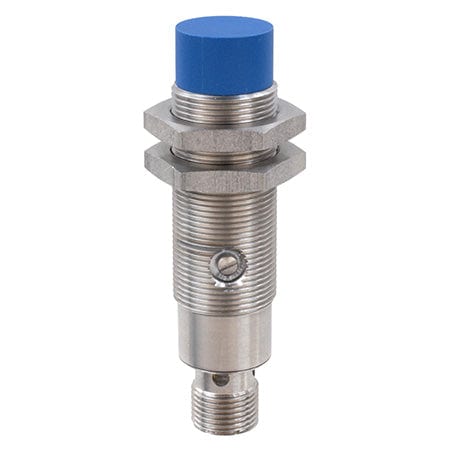

13.56 MHz Read/write module Basic M18 mm
SKU: RLS-1183-020
Contrinex RFID RFID 1356-MHz-Read-write-module-Basic-M18-mm RLS-1183-020
Regular price
RM983.00 MYR
Secure Checkout
Need help? Click here to contact an expert
RLS-1183-020
| Operating range | 31 mm |
| Operating Frequency | 13.56 MHz |
| Supply voltage | 14...32 |
| Standard | ISO/IEC 15693 |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+80°C |
| Mounting | Non-embeddable |
| Interface | ContriNET x RFID |
| Product series | Read/write module |
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| FCC certificate |
|
| IC certificate |
|
| Application notes URL |
|
| DLL |
|
| Function blocks |
|
| Softwares |
|
RFID RFID 1356-MHz-Read-write-module-Basic-M18-mm RLS-1183-020
