IDDR-M18MP-NMS-A0
| Operating range | 10...150 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Sensitivity adjustment | IO-Link only |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Sensitivity Range Adjustment | 20...150 mm |
| Temperature range | -25...+65°C |
| Light source | Pinpoint LED, red 640 nm |
| Interface | IO-Link |
| Operating principle | Digital measurement |
| Sensing range max. | 10...165 mm |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|

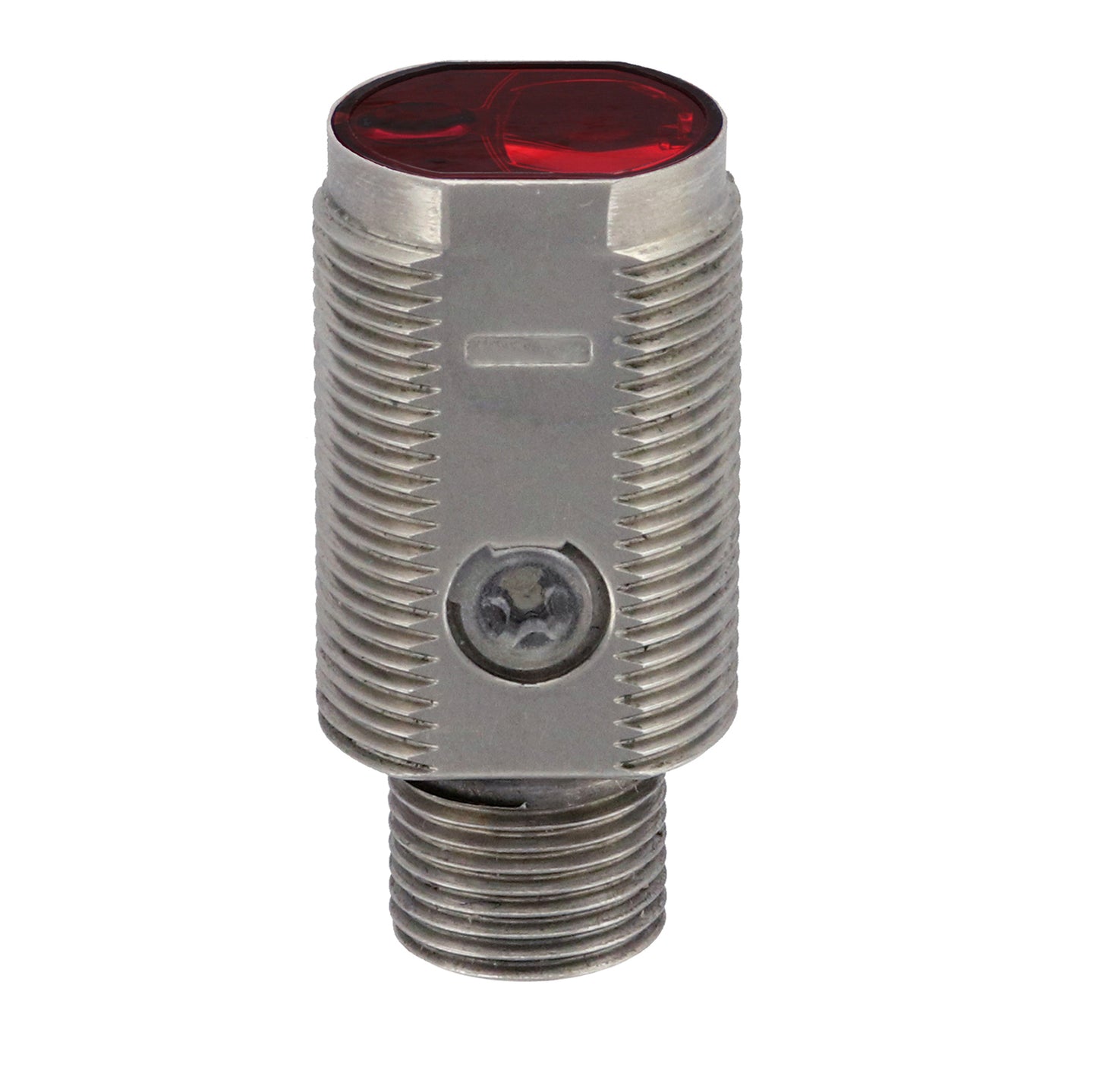

Photoelectrics Smart Sensor Advanced-Smart-Digital-measurement-10150-mm-Stainless-steel-V2A-IO-Link-only-Pinpoint-LED-red-640-nm IDDR-M18MP-NMS-A0
Advanced Smart Digital measurement 10...150 mm Stainless steel V2A IO Link only Pinpoint LED, red 640 nm
SKU: IDDR-M18MP-NMS-A0
Regular price
RM929.00 MYR
