YBES-30K4-0170-P012
| Operating range | 0.25...5 m |
| Sender wavelength | IR 850 nm |
| Protective height | 170 mm |
| Supply voltage | 24 |
| Polarity | PNP |
| Safety Level | Cat. 4, PL e, Type 4, SIL 3 |
| Connection | PUR, 0.3 m, 5 / 8 wire + M12 5-pin / M12 8-pin |
| Housing size [mm] | 26 x 26 (slim) |
| Enclosure rating | IP 65 |
| Safety Type | Kit |
| Response time | 7.8 ms |
| Resolution | 30 mm (hand) |
| Temperature range | 0...+55°C |
| Sensor Height | 170 mm |
| Product Range | Light curtain extended slim |
| Beam gap | 20 mm |
| Type | Format |
| Datasheet |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
| FCC certificate |
|
| UL certificate |
|
Safety Safety Light-curtain-extended-slim-Type-4-Hand-30-mm-hand-Cat-4-PL-e-Type-4-SIL-3 YBES-30K4-0170-P012

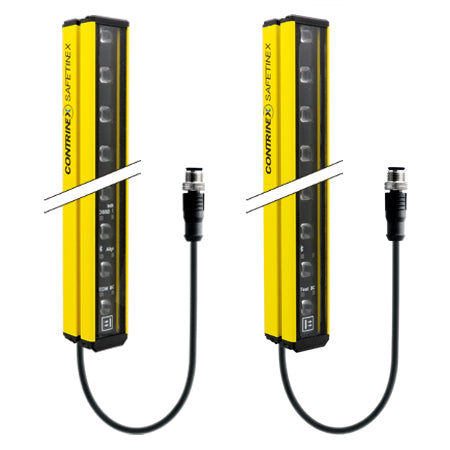

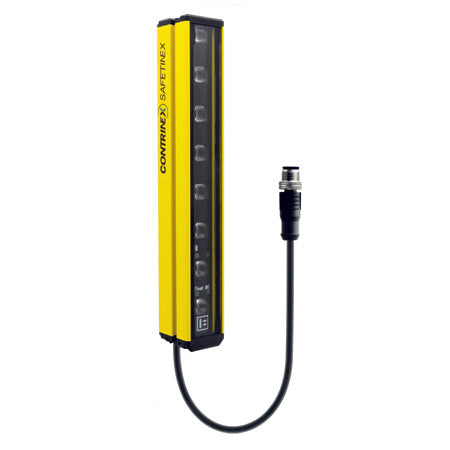

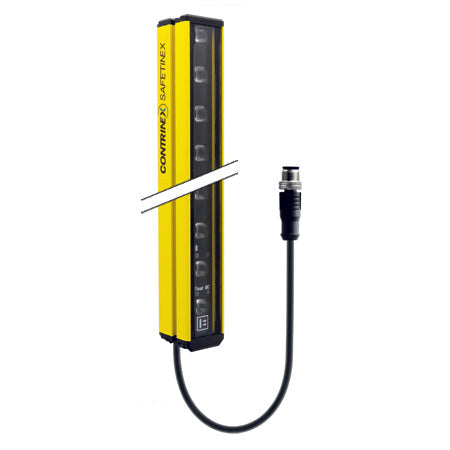

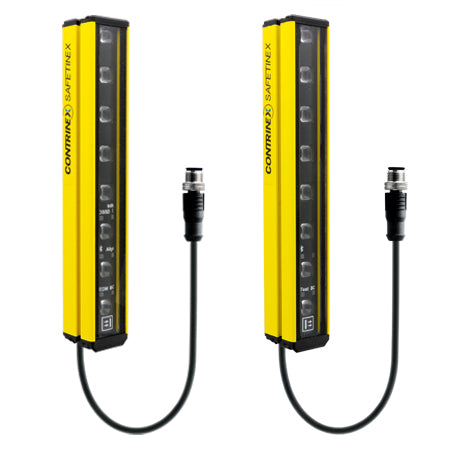

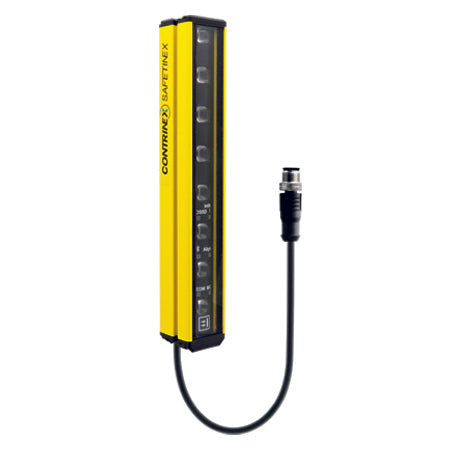

Light curtain extended slim Type 4 Hand 30 mm (hand) Cat. 4, PL e, Type 4, SIL 3
SKU: YBES-30K4-0170-P012
Regular price
From RM2,731.00 MYR
