LLR-M18MA-NMS-101
| Operating range | 0...25000 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Sensitivity adjustment | No |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+65°C |
| Light source | LED, red 630 nm |
| Interface | Standard output |
| Operating principle | Through-beam |
| Sensing range max. | 0...30000 mm |
| Type | Format |
| Datasheet |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|

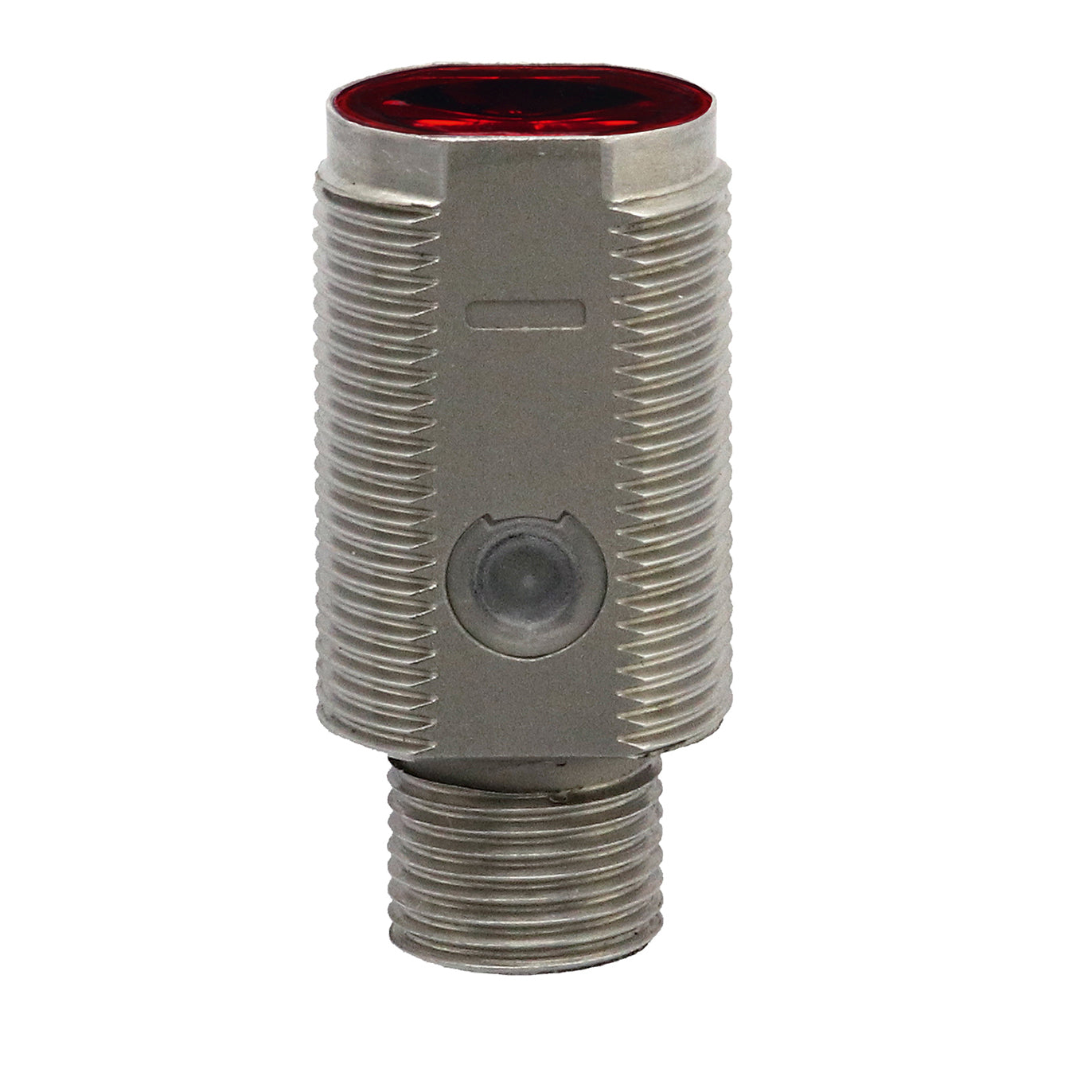

Photoelectrics Sensor Standard-Through-beam-M18-025000-mm-Stainless-steel-V2A-LED-red-630-nm LLR-M18MA-NMS-101
Standard Through beam M18 0...25000 mm Stainless steel V2A LED, red 630 nm
SKU: LLR-M18MA-NMS-101
Regular price
From RM311.00 MYR
