LTR-M05MA-WXV-301
| Operating range | 0...100 mm |
| Switching frequency max. | 1000 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on + Teach input |
| Sensitivity adjustment | No |
| Connection | M8 4-pin |
| Housing size [mm] | M5 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+65°C |
| Light source | LED, red 680 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 0...120 mm |
| Type | Format |
| Datasheet |
|
| CE Certificate |
|
| UKCA Certificate |
|
| UL Certificate |
|

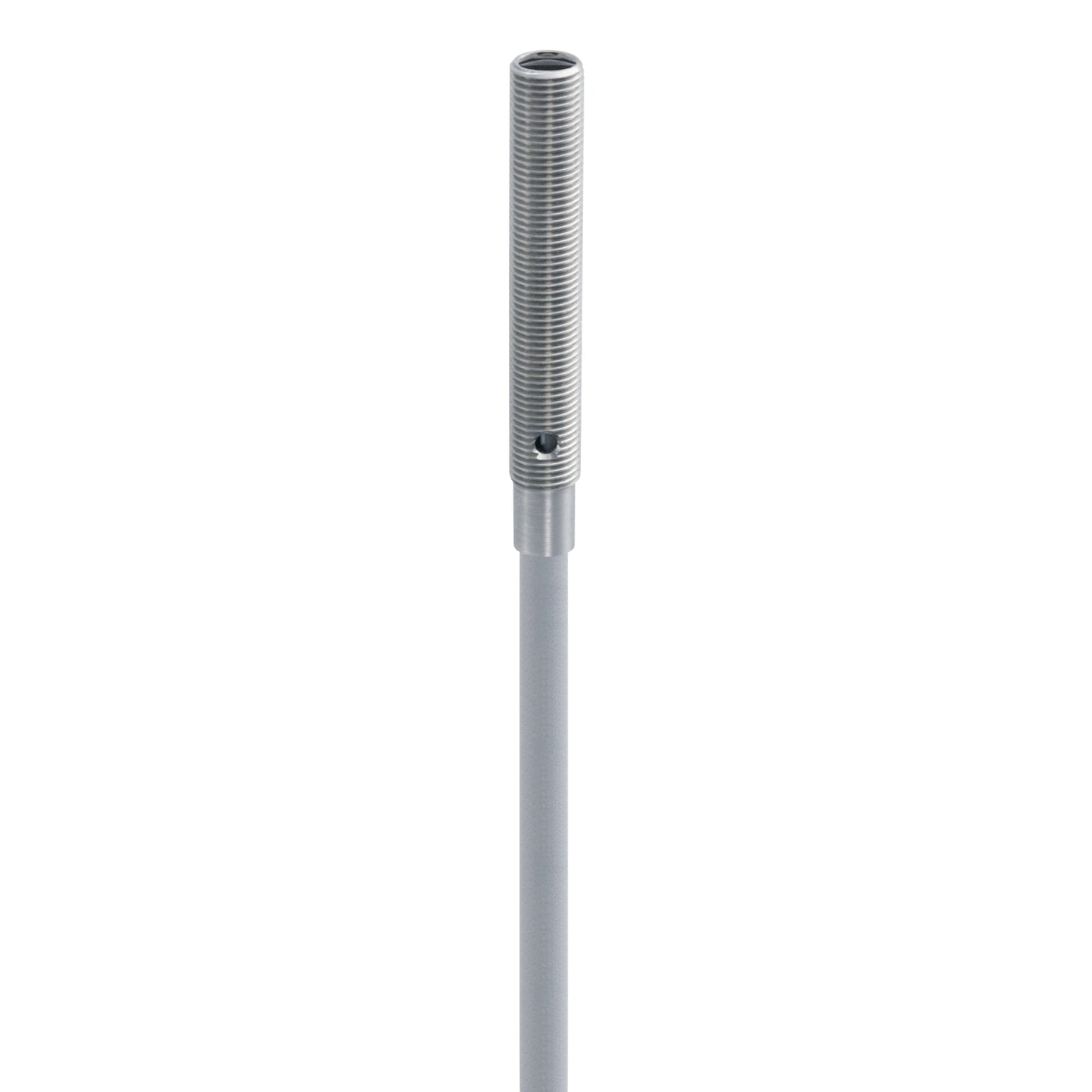

Photoelectrics Sensor Miniature-Diffuse-M5-0100-mm-Stainless-steel-V2A-LED-red-680-nm LTR-M05MA-WXV-301
Miniature Diffuse M5 0...100 mm Stainless steel V2A LED, red 680 nm
SKU: LTR-M05MA-WXV-301
Regular price
₱7,800.00
Ready to ship in 3–5 weeks
Standard delivery approx. 4–6 working days
Secure Checkout
Need help? Click here to contact an expert
