DW-AD-603-04
| Operating range | 0.8 mm |
| Switching frequency max. | 5000 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | Ø 4 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+70°C |
| Sensor Height | 25 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|

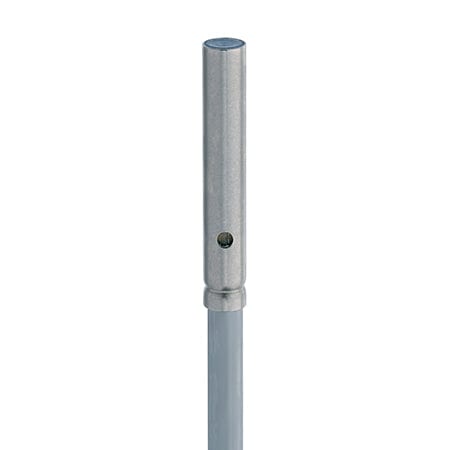

Inductives Sensor Miniature-Classics-Series-600-04-Embeddable-08-mm DW-AD-603-04
Miniature Classics Series 600 Ø 4 Embeddable 0.8 mm
SKU: DW-AD-603-04
Regular price
From Rs.21,700.00
