Short Specifications

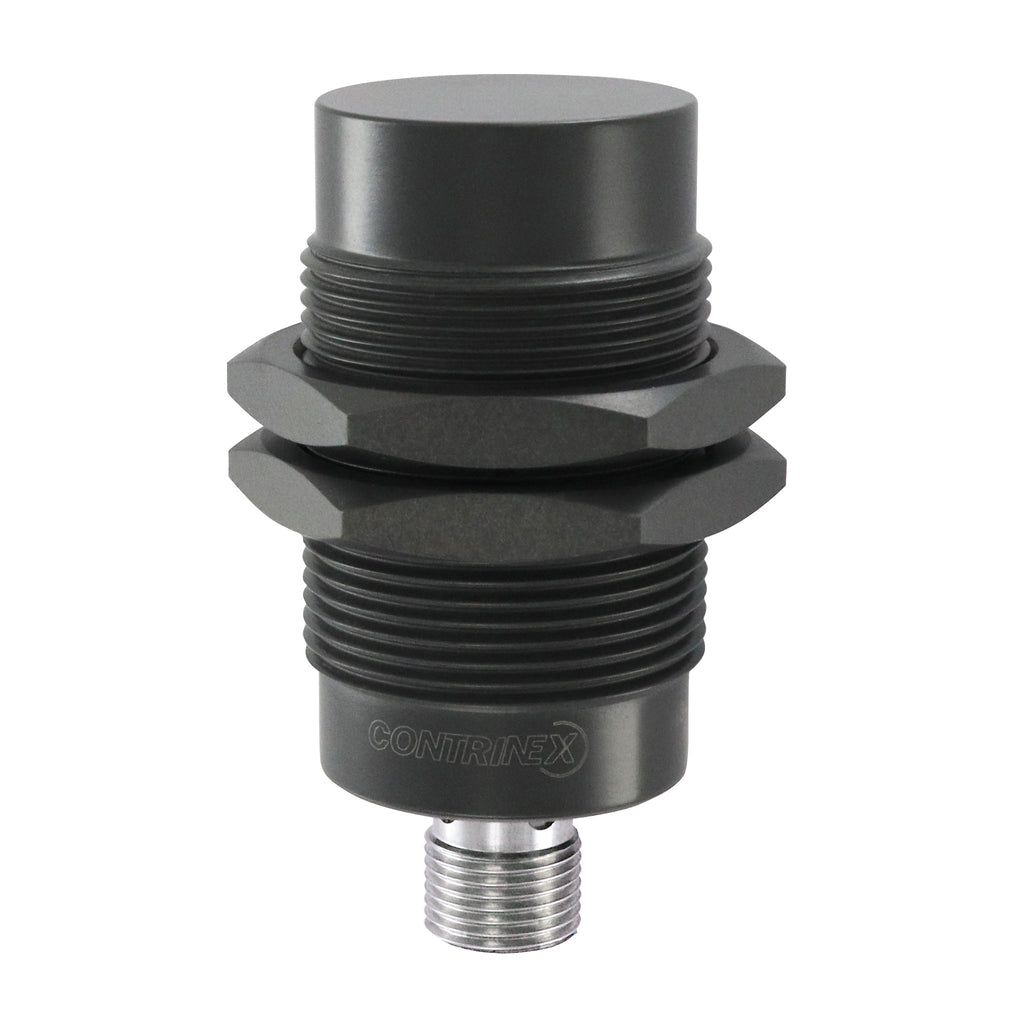

IDSN-M30AA-NMS-A0-136
| Operating range | 3...5 mm |
| Switching frequency max. | 3 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Connection | M12 4-pin |
| Housing size [mm] | M30 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | +10...+60°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Operating principle | Double-sheet detection |
