DW-AS-63A-C44
| Operating range | 40 mm |
| Switching frequency max. | 100 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Changeover (NO/NC)/IO-Link |
| Connection | M12 4-pin |
| Housing size [mm] | 40 x 40 (C44) |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | PA GF |
| Temperature range | -25...+85°C |
| Sensor Height | 67 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|

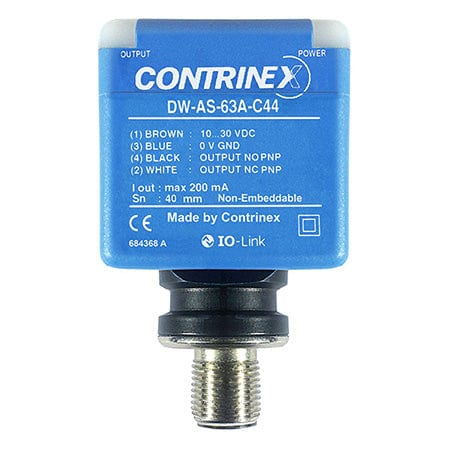

Inductives Sensor Basic-Classics-Series-600-40-40-C44-Non-embeddable-40-mm DW-AS-63A-C44
Basic Classics Series 600 40 x 40 (C44) Non embeddable 40 mm
SKU: DW-AS-63A-C44
Contrinex Inductives Sensor Basic-Classics-Series-600-40-40-C44-Non-embeddable-40-mm DW-AS-63B-C44
Regular price
€71,10
Secure Checkout
Need help? Click here to contact an expert
DW-AS-63A-C44
| Operating range | 40 mm |
| Switching frequency max. | 100 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Changeover (NO/NC)/IO-Link |
| Connection | M12 4-pin |
| Housing size [mm] | 40 x 40 (C44) |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | PA GF |
| Temperature range | -25...+85°C |
| Sensor Height | 67 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Inductives Sensor Basic-Classics-Series-600-40-40-C44-Non-embeddable-40-mm DW-AS-63A-C44
