DW-AD-703-R81-693
| Operating range | 2 mm |
| Switching frequency max. | 15 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | 17 x 8 (R81) |
| Enclosure rating | IP 67 |
| Housing material | ActivStone-Coated S.Steel V4A |
| Temperature range | -25...+85°C |
| Sensor Height | 4.7 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
Inductives Sensor Weld-immune-Full-Inox-Series-700-ActivStone-Coated-SSteel-V4A-17-8-R81-Embeddable-2-mm-PNP DW-AD-703-R81-693

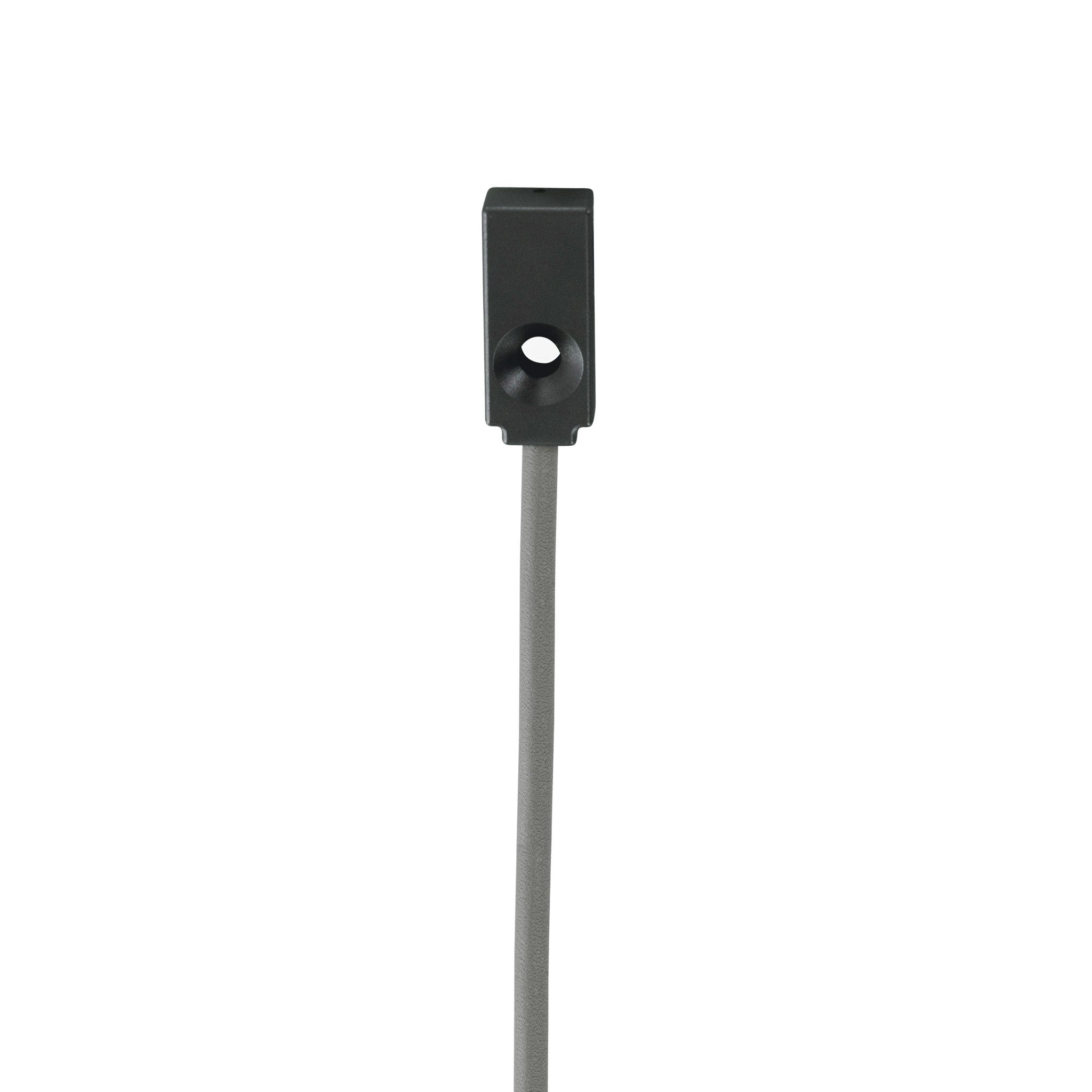

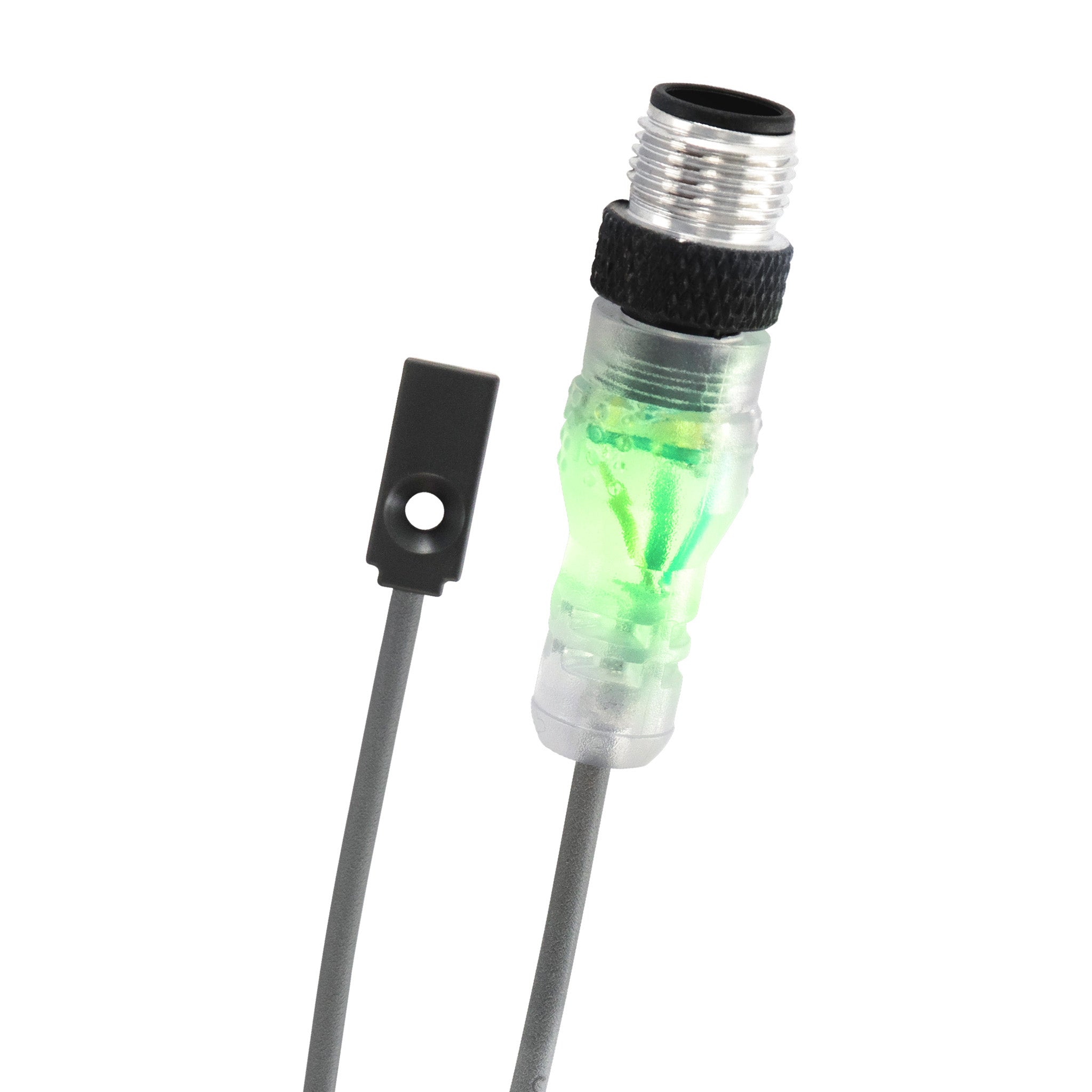

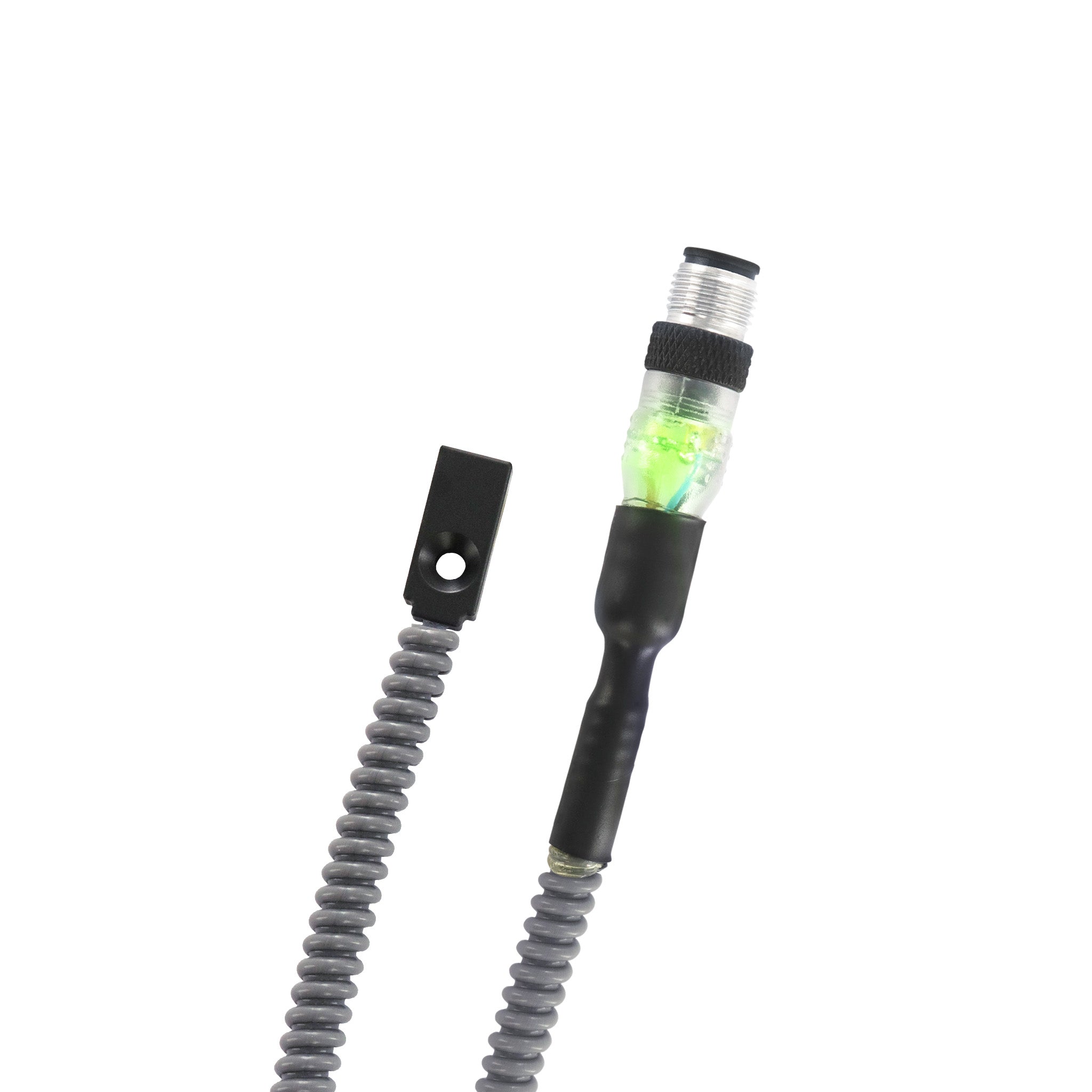

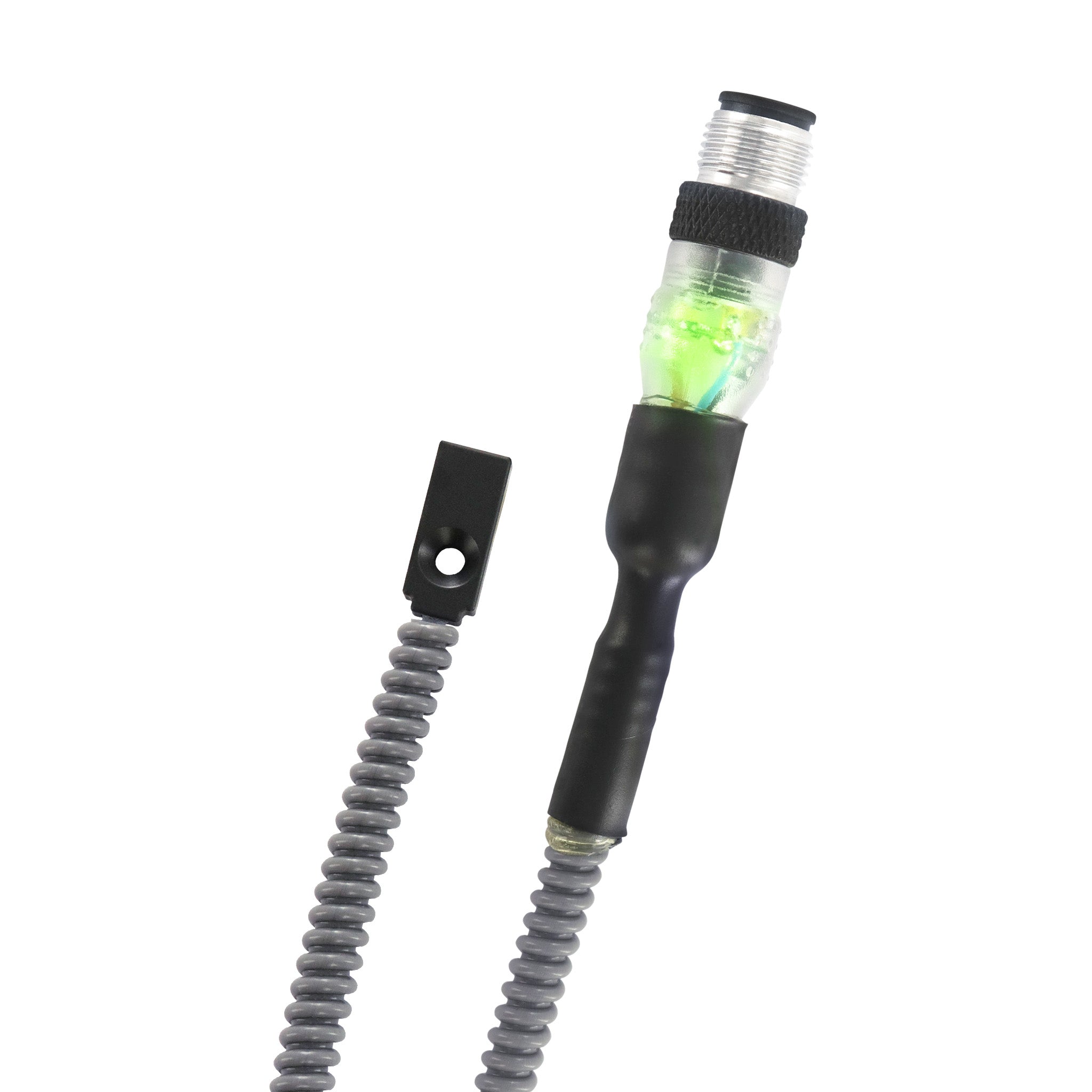

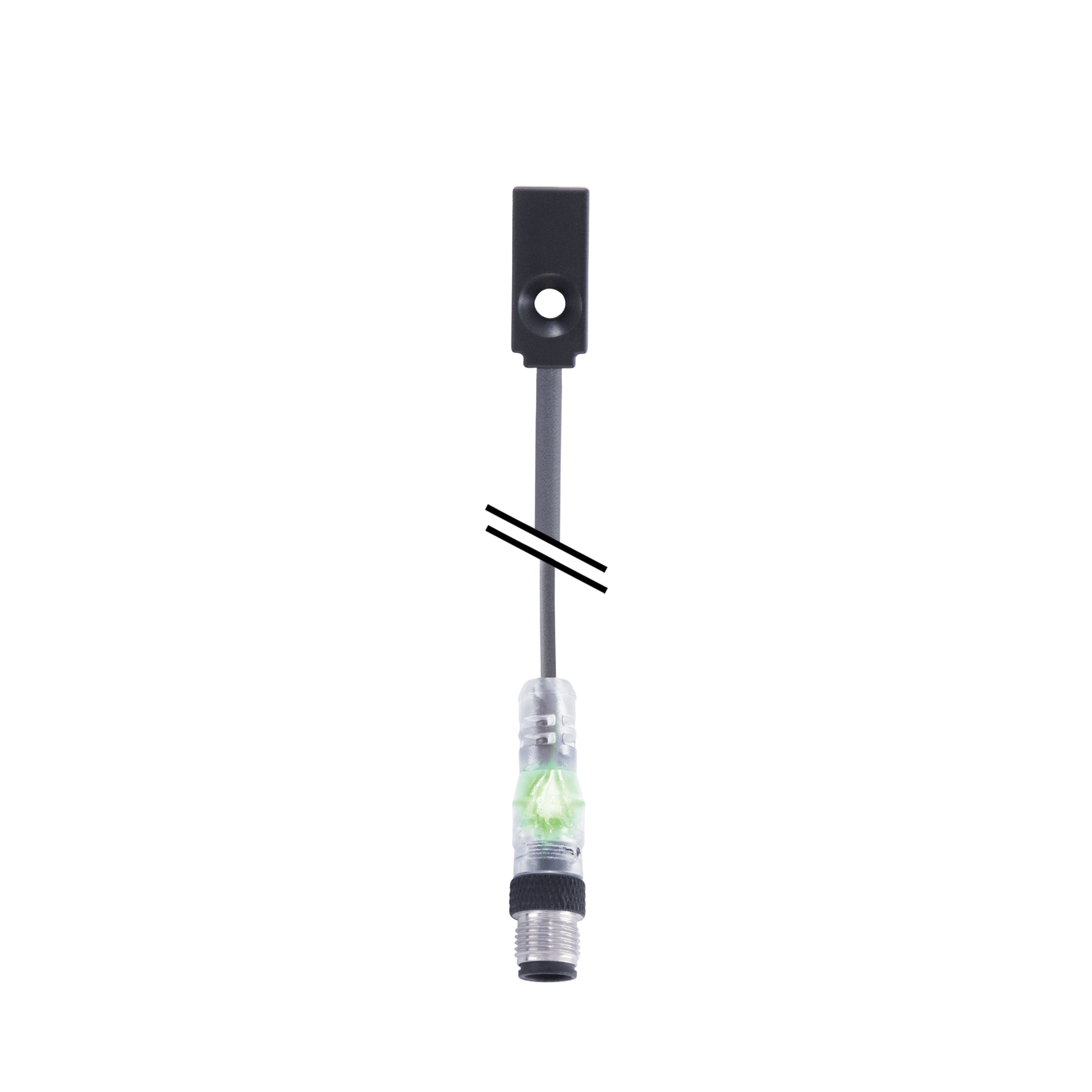

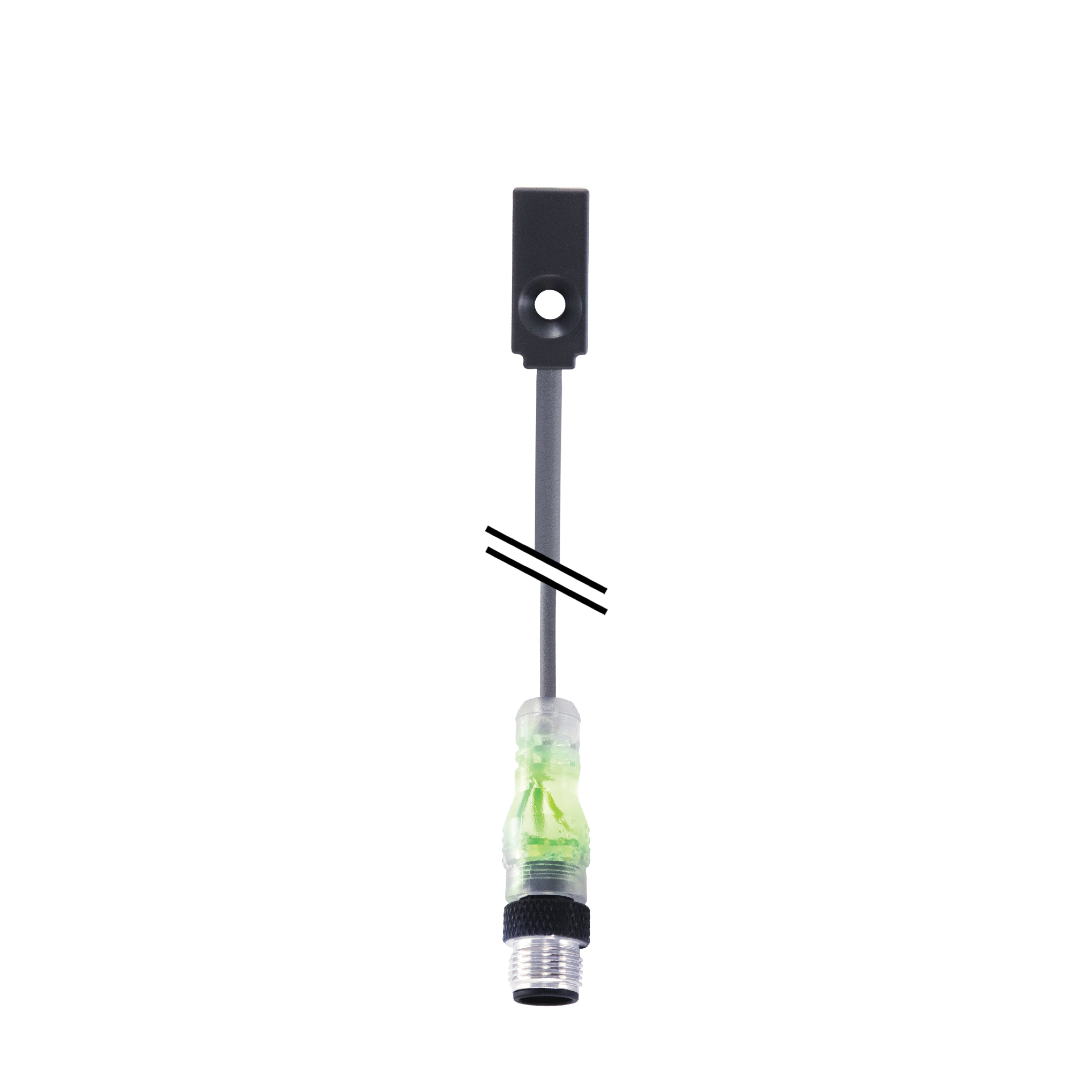

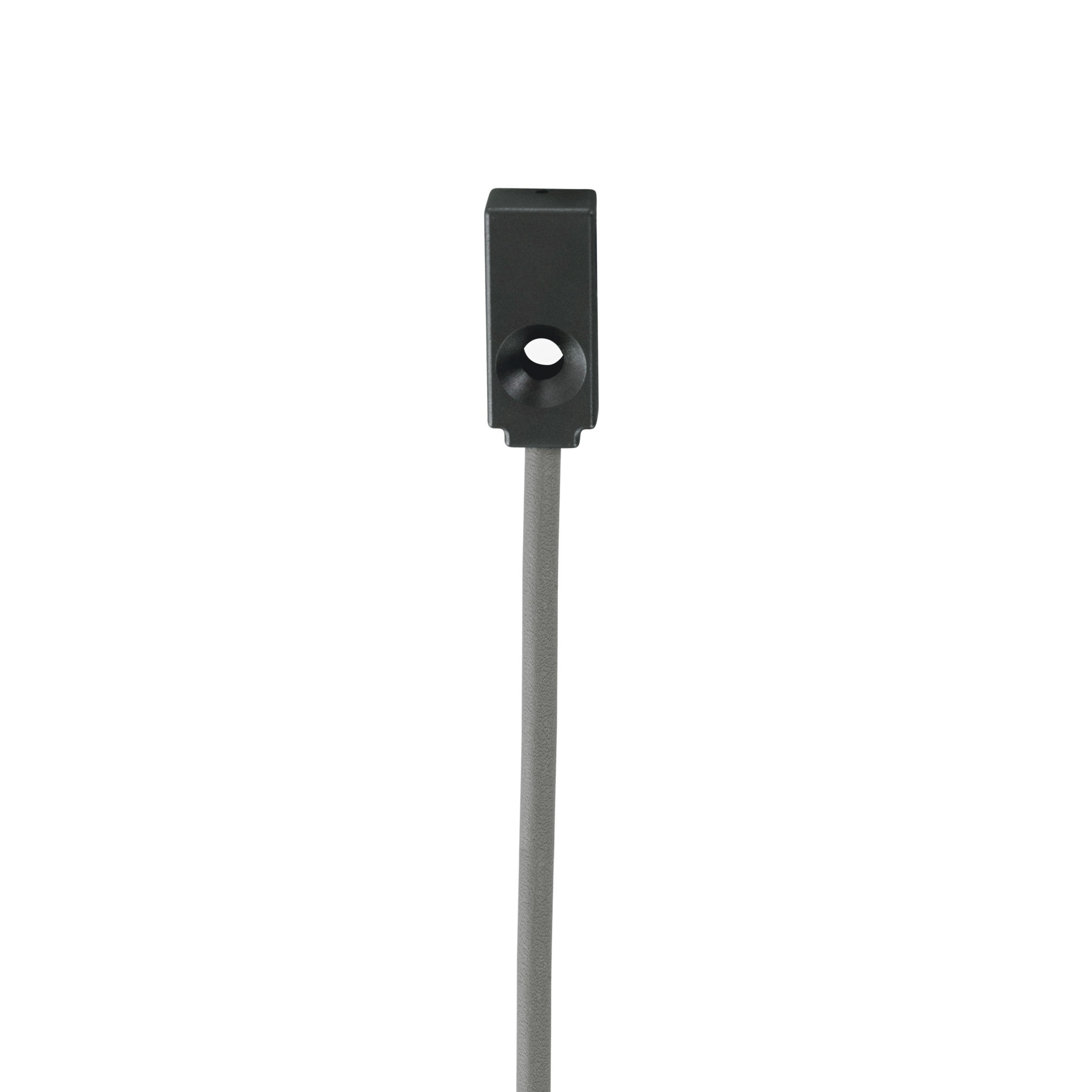

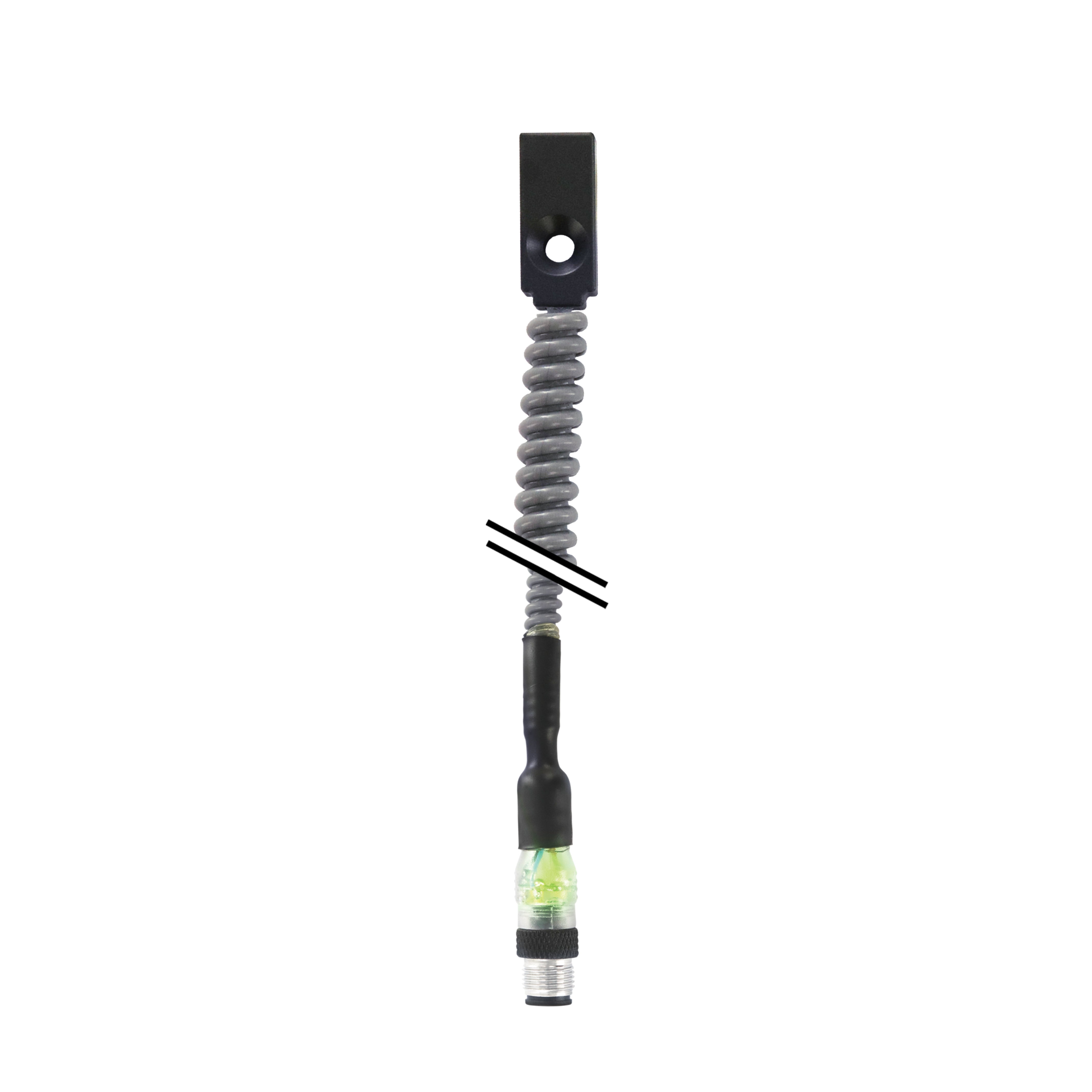

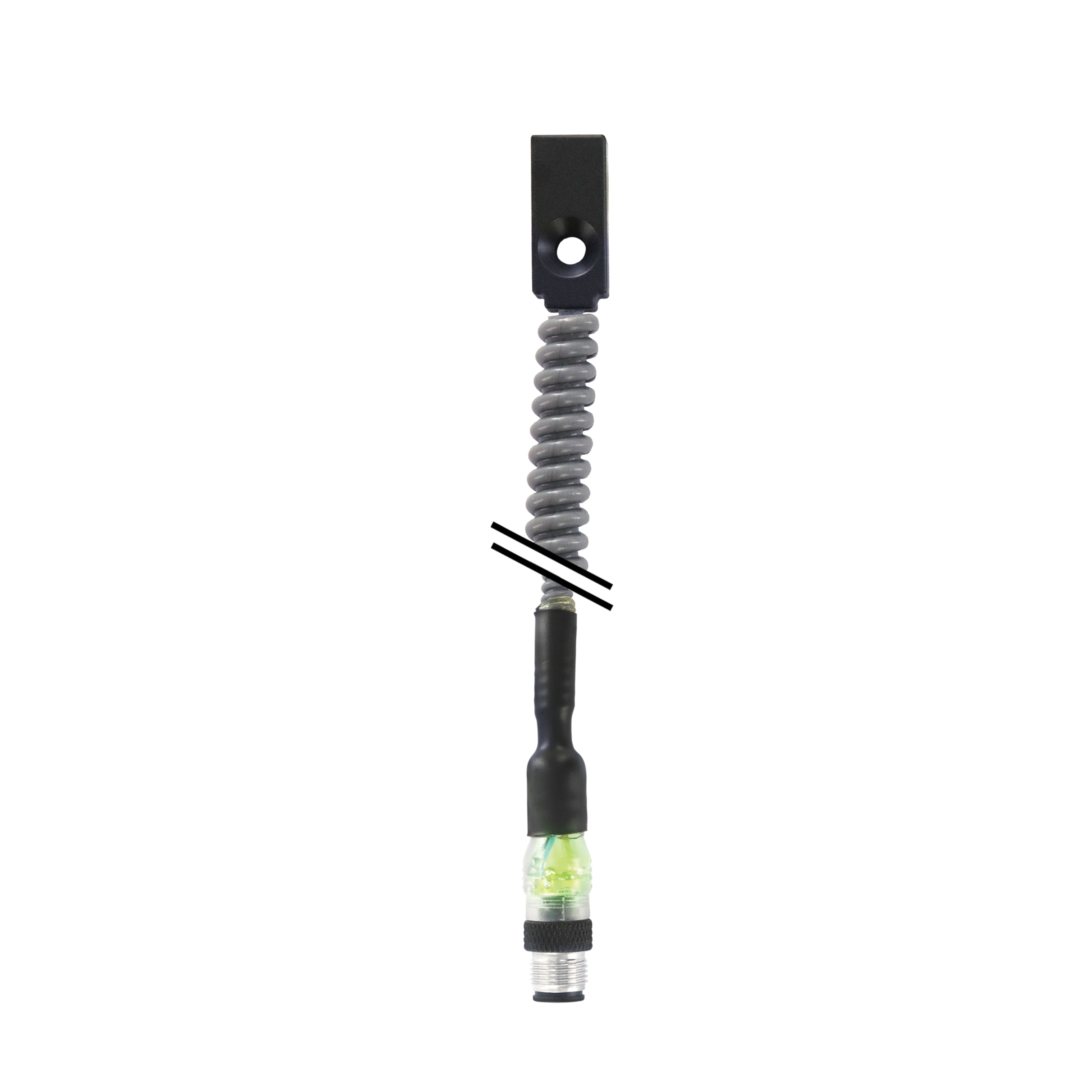

Weld immune Full Inox Series 700 ActivStone Coated S.Steel V4A 17 x 8 (R81) Embeddable 2 mm PNP
SKU: DW-AD-703-R81-693
Regular price
From €154,50
Secure Checkout
Need help? Click here to contact an expert
DW-AD-703-R81-693
| Operating range | 2 mm |
| Switching frequency max. | 15 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | 17 x 8 (R81) |
| Enclosure rating | IP 67 |
| Housing material | ActivStone-Coated S.Steel V4A |
| Temperature range | -25...+85°C |
| Sensor Height | 4.7 mm |
| Mounting | Embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
Inductives Sensor Weld-immune-Full-Inox-Series-700-ActivStone-Coated-SSteel-V4A-17-8-R81-Embeddable-2-mm-PNP DW-AD-703-R81-693
