Dual Output(s)
OSS – Output switching signals
OSS1 (Ouput 1) linked to pin/wire number 4. Works as an IO-link pin when connected to an IO-Link master
OSS2 (Output 2) linked to pin/wire number 4. Can also be configured as an SIO Input on DMS Sensors.
Configure Output(s)

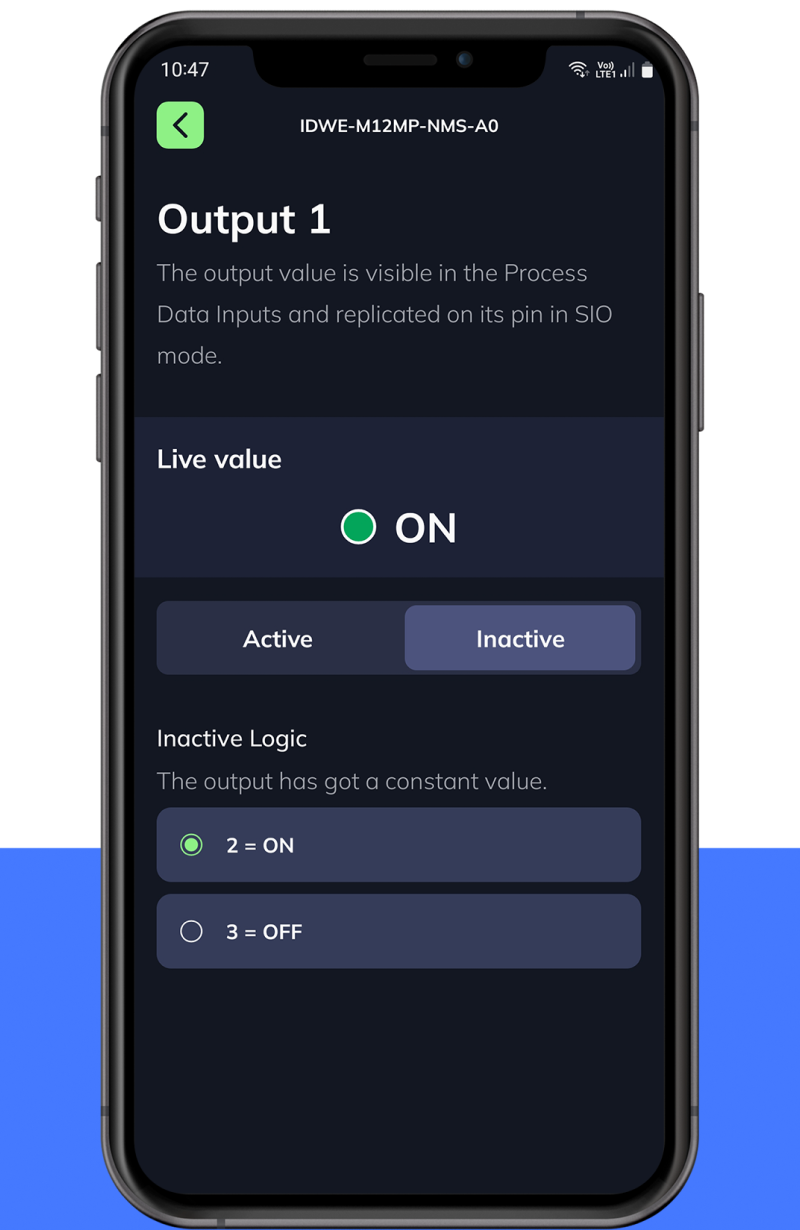

1 Inactive
Set Output to Inactive during maintenance and test procedures.

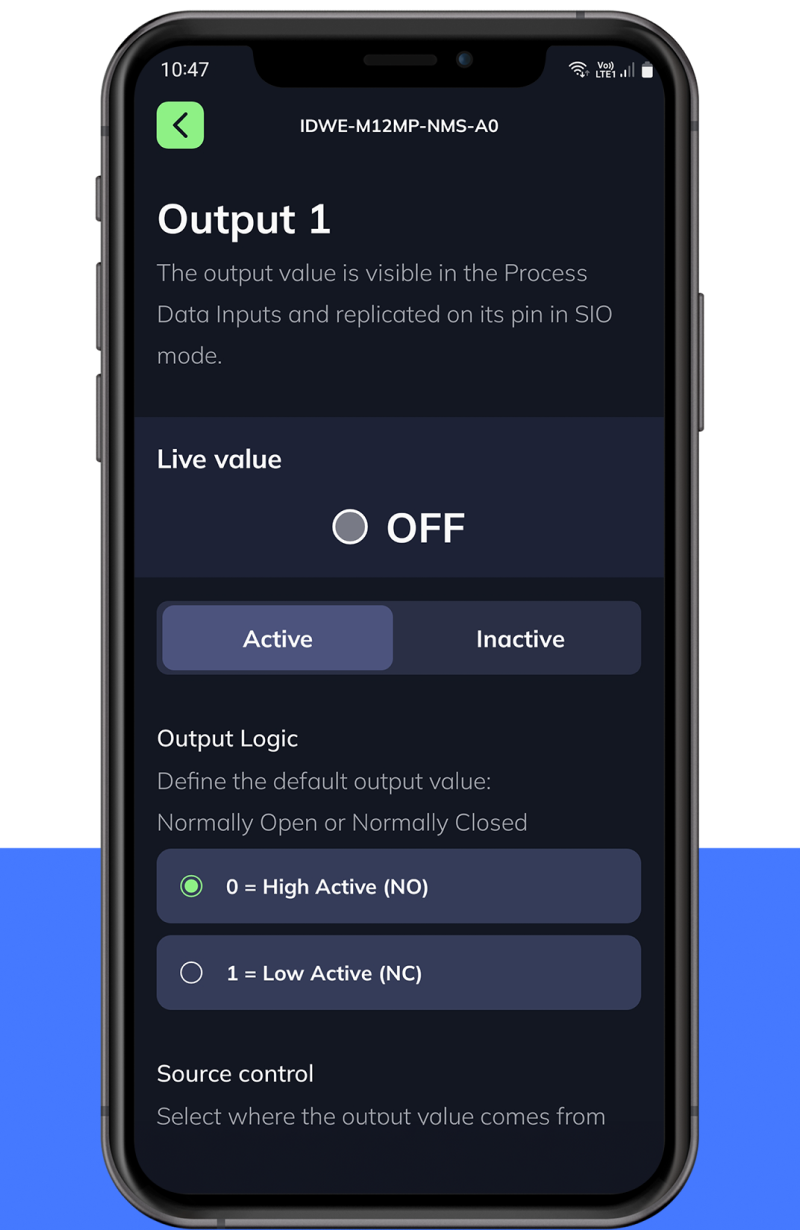

1 Active
Set Output to Active.
Set output logic to:
High Active (NO) or Low Active (NC)

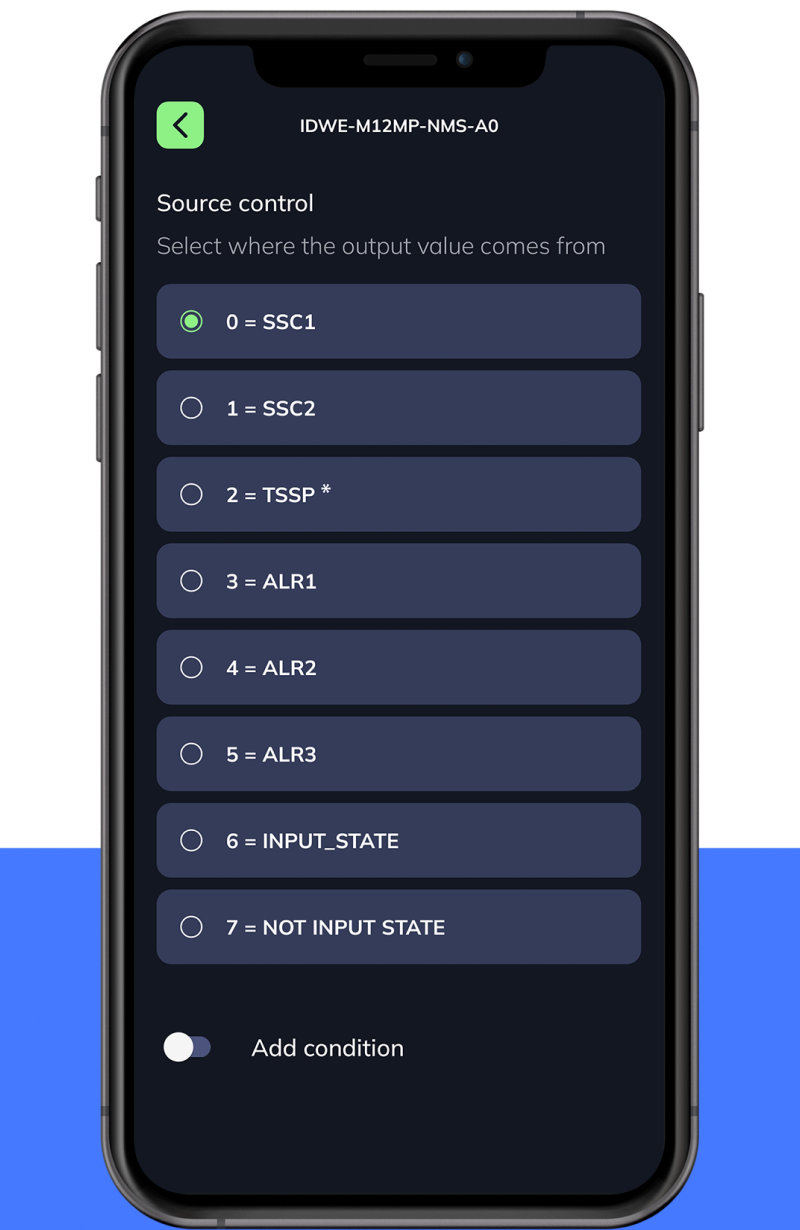

Select internal source signal to be redirected to the output pin.
*Only for Inductive DMS sensors *

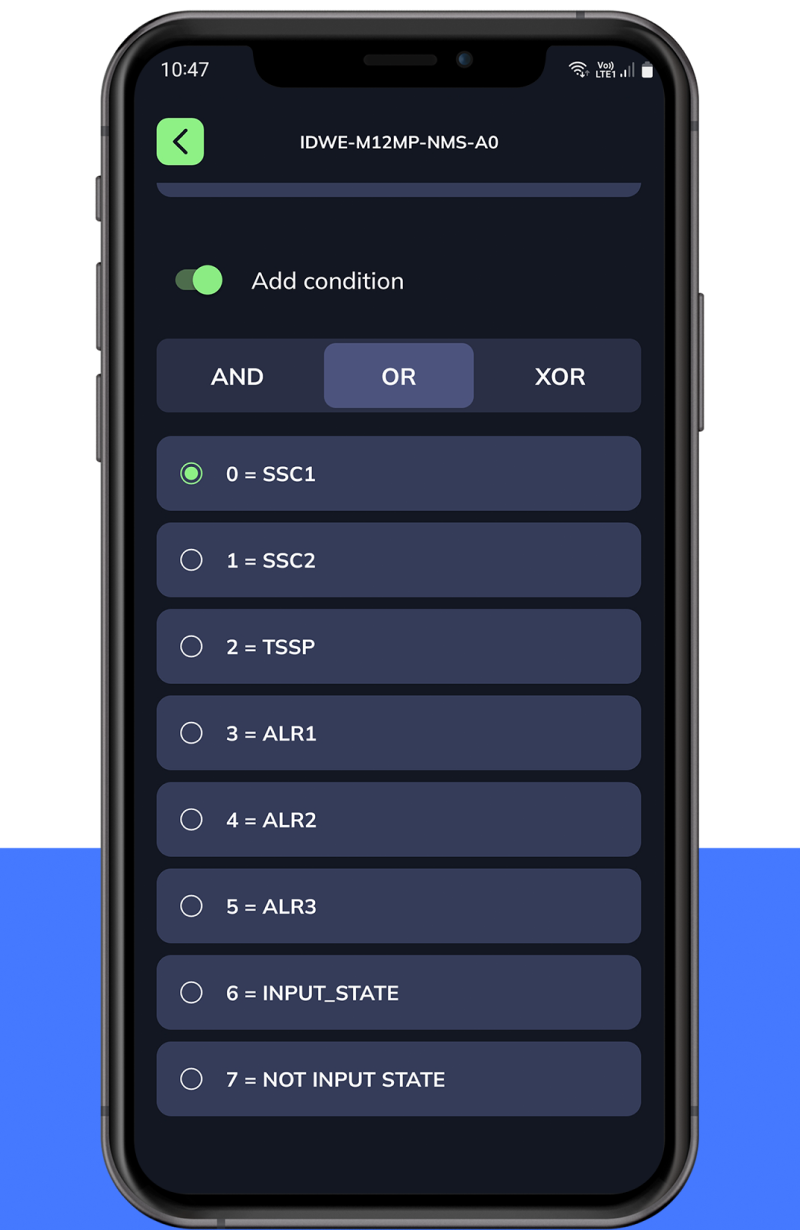

Conditional Output Logic
Optionally combine internal signals and alarms and/or an external signal from OSS2 input.

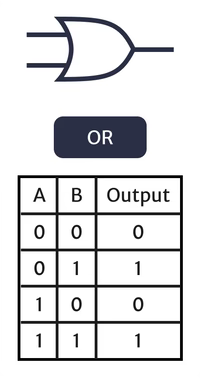

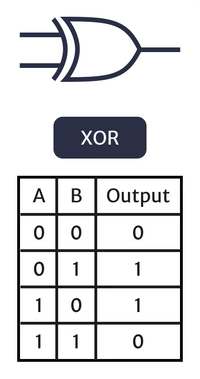

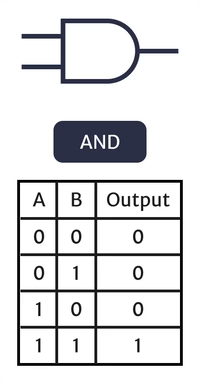

Use AND, OR or XOR functions to define conditional output logic.

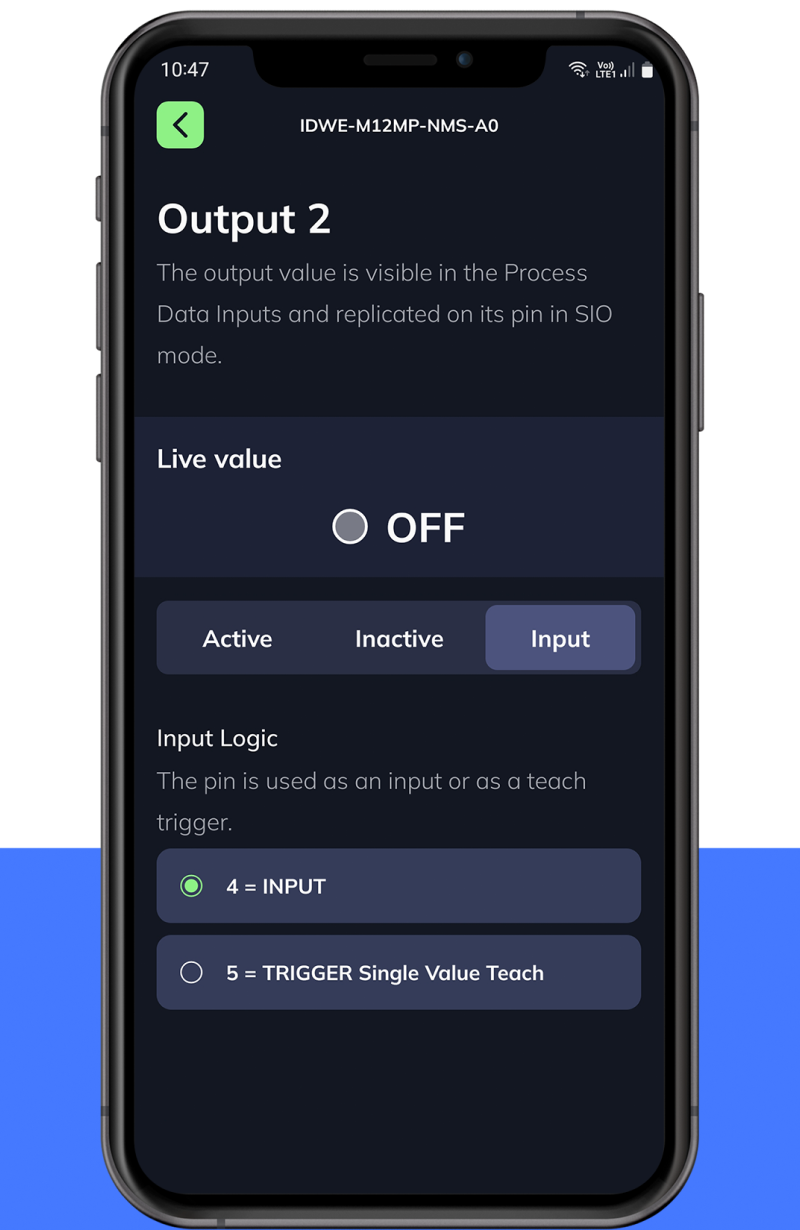

Configure Output 2 as an Input
Configure OSS2 (Output 2) as an input signal to be used in logical functions of OSS1 (Output 1).
Useful for daisy chaining of multiple sensors or devices.
