Short Specifications

DW-AD-503-M30

Operating range 22 mm
Switching frequency max. 200 Hz
Supply voltage 10...30
Polarity PNP
Output Normally Open (NO)
Connection PVC, 2 m, 3 wire
Housing size [mm] M30
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+70°C
Sensor Height 60 mm
Mounting Quasi-embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

3D CAD Library

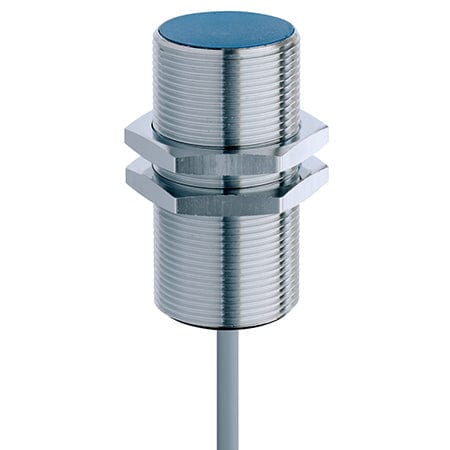

Basic Extra Distance Series 500 M30 Quasi embeddable 22 mm

SKU: DW-AD-503-M30

Connection: PVC, 2 m, 3 wire
Polarity and Output: PNP|Normally Open (NO)
Sensor length: 60 mm
Price:
Sale price€75,25
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
