Short Specifications

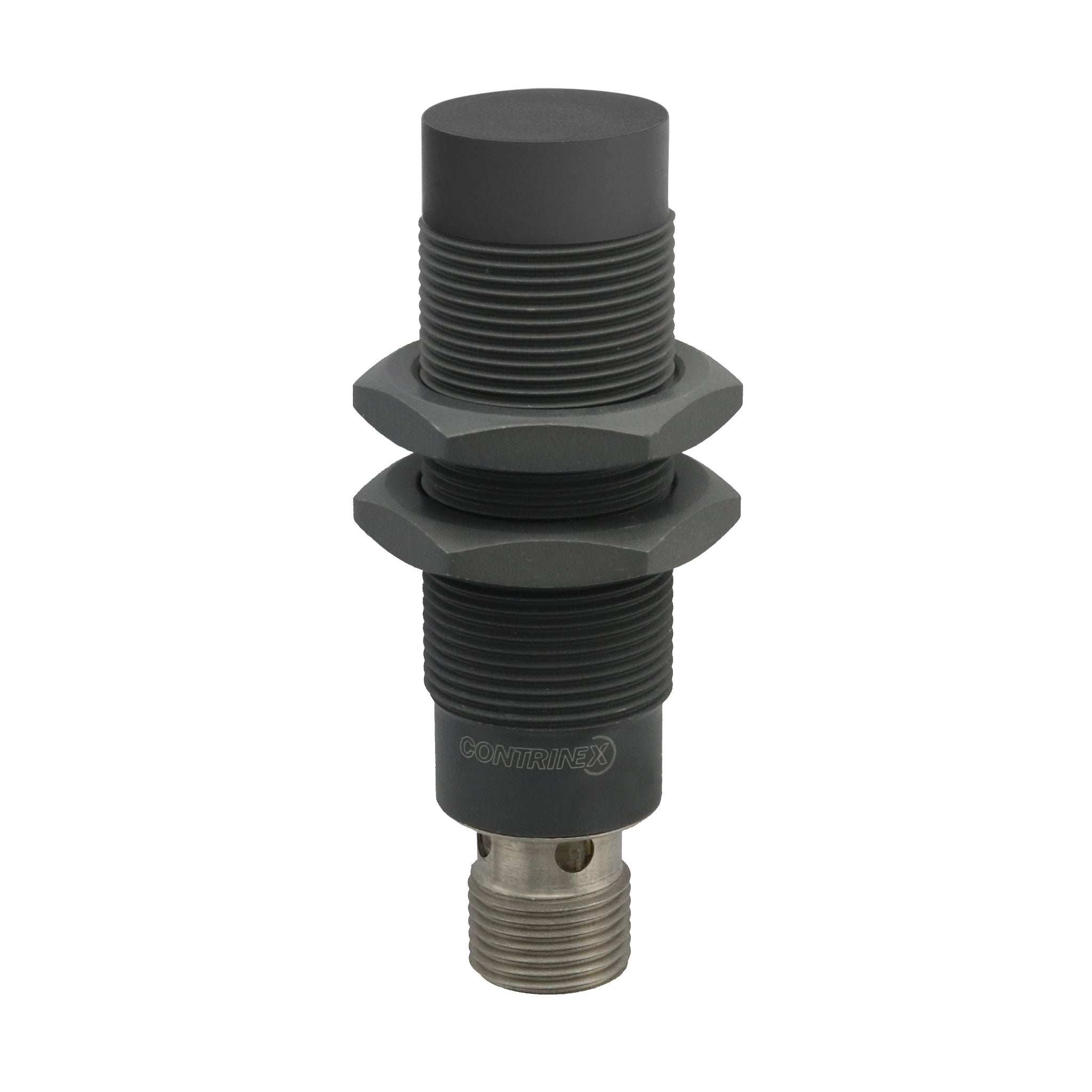

IDSN-M18AA-NMS-A0
| Operating range | 1...10 mm |
| Switching frequency max. | 3 Hz |
| Supply voltage | 18...30 |
| Polarity | PNP |
| Output | OSS1/IO-Link + OSS2/INPUT |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | ActivStone-Coated S.Steel V2A |
| Temperature range | +10...+60°C |
| Sensor Height | 63.5 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Sensing range max. | 0...10 mm |
Downloads
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
