DMS Double Sheet PocketCodr Config Smart M30
DMS Double Sheet PocketCodr Config Smart M30
DMS Double Sheet PocketCodr Config Smart M30DMS Double Sheet PocketCodr Config Smart M30

Short Specifications

IDSN-M30AA-NMS-A0

Operating range 1...12 mm
Switching frequency max. 3 Hz
Supply voltage 18...30
Polarity PNP
Output OSS1/IO-Link + OSS2/INPUT
Connection M12 4-pin
Housing size [mm] M30
Enclosure rating IP 68 / IP 69K
Housing material ActivStone-Coated S.Steel V2A
Temperature range +10...+60°C
Sensor Height 63.5 mm
Mounting Non-embeddable
Interface IO-Link
Sensing range max. 0...12 mm

Downloads

Type Format
Datasheet pdf
IODD zip pdf
Operating manual pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

See PocketCodr Tutorial Videos

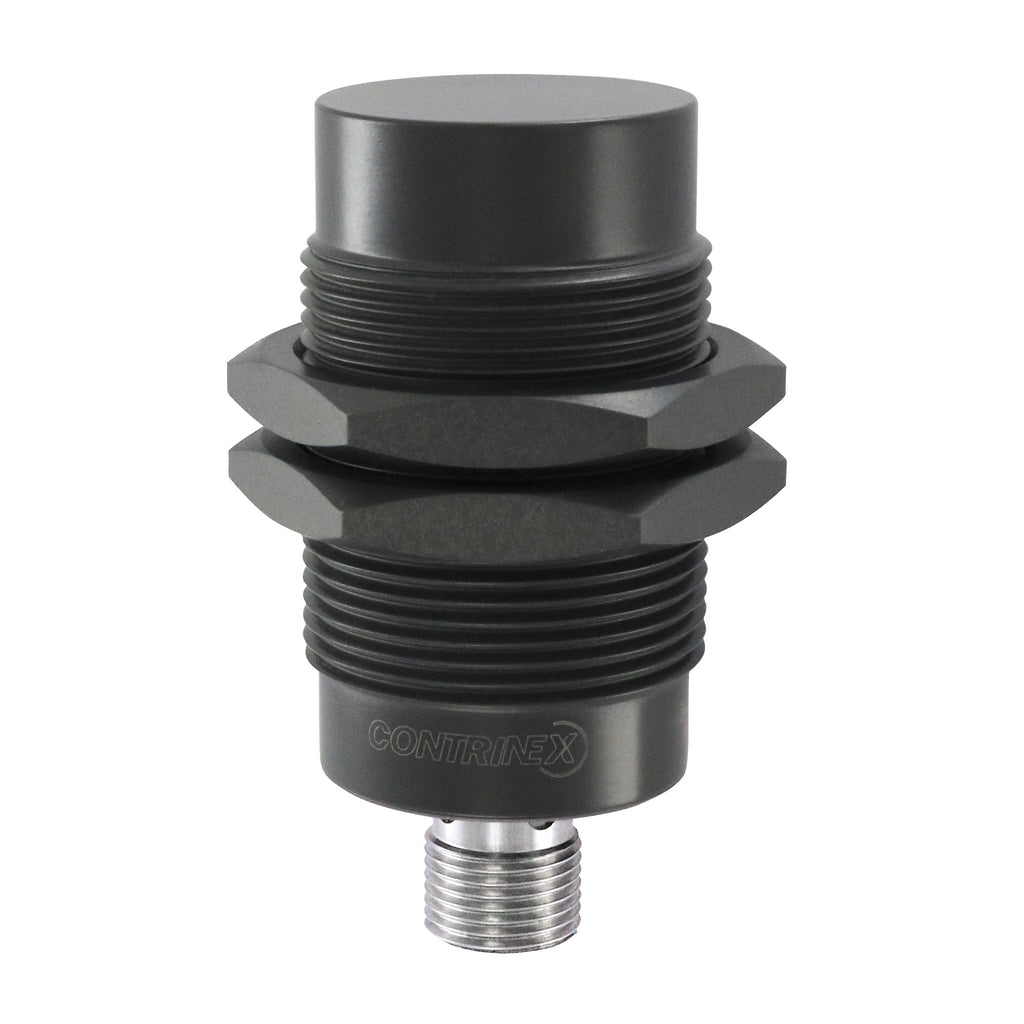

DMS Double Sheet PocketCodr Config Smart M30

SKU: IDSN-M30AA-NMS-A0

Smart double sheet detection sensor for reliable detection across a wide range of materials and thicknesses. Easily teachable for optimal performance in your application. Configuration is handled via the PocketCodr teach widget, including access to a curated material database. Requires an active PocketCodr “Application” subscription.

Connection and Mounting: M12 4-pin|Non-embeddable
Polarity and Output: PNP|OSS1/IO-Link + OSS2/INPUT
Sensor length and housing material: 63.5 mm|ActivStone-Coated S.Steel V2A
Price:
€1.081,50
Stock:
Re-stocking soon

Secure Checkout

Visa Mastercard American Express Apple Pay Google Pay Shop Pay Union Pay

Estimated Delivery Time 2-3 weeks
