Short Specifications

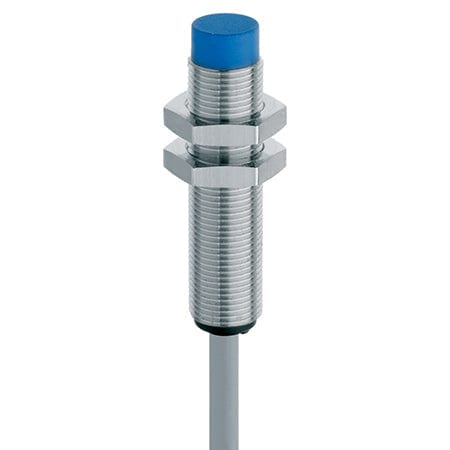

DW-AD-613-M12-733
| Operating range | 4 mm |
| Switching frequency max. | 2000 Hz |
| Supply voltage | 10...30 |
| Polarity | PNP |
| Output | Normally Open (NO) |
| Connection | PUR, 5 m, 3 wire |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Nickel-plated brass |
| Temperature range | -25...+100°C |
| Sensor Height | 50 mm |
| Mounting | Non-embeddable |
| Interface | Standard output |
Downloads
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
3D CAD Library
Estimated Delivery Time 2-3 weeks
