DW-AD-713-M12-303
| Operating range | 4 mm |
| Switching frequency max. | 600 Hz |
| Supply voltage | 10...30 |
| Operating pressure [bar] | ≤ 80 bar |
| Polarity | PNP |
| Output | Normally Open (NO)/IO-Link |
| Connection | PUR, 2 m, 3 wire |
| Housing size [mm] | M12 |
| Enclosure rating | IP 68 / IP 69K |
| Housing material | Stainless-steel V2A |
| Temperature range | -25...+85°C |
| Sensor Height | 50 mm |
| Mounting | Non-embeddable |
| Interface | IO-Link |
| Type | Format |
| Datasheet |
|
| IODD zip |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Inductives Sensor Extreme-Full-Inox-Series-700-Stainless-steel-V2A-M12-Non-embeddable-4-mm DW-AD-713-M12-303

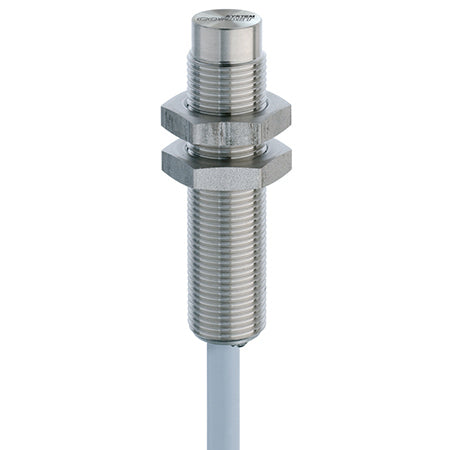

Extreme Full Inox Series 700 Stainless steel V2A M12 Non embeddable 4 mm
SKU: DW-AD-713-M12-303
Regular price
€87,70
