Short Specifications

DW-AS-523-P12

Operating range 2.5 mm
Switching frequency max. 600 Hz
Supply voltage 10...30
Operating pressure [bar] ≤ 500 bar
Polarity PNP
Output Normally Open (NO)/IO-Link
Connection M12 4-pin
Housing size [mm] M12
Enclosure rating IP 68
Housing material Stainless-steel V2A
Temperature range -25...+100°C
Sensor Height 69 mm
Mounting Embeddable
Interface IO-Link

Downloads

Type Format
Datasheet pdf
IODD zip pdf
CE certificate pdf
UKCA certificate pdf
UL certificate pdf

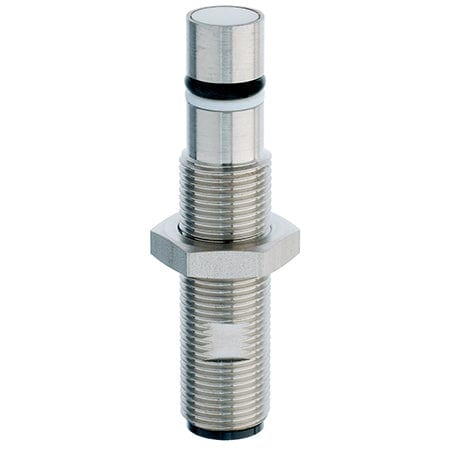

High pressure Extra Distance Series 500 M12 Embeddable 2.5 mm

SKU: DW-AS-523-P12
Connection: M12 4-pin
Polarity and Output: PNP|Normally Open (NO)/IO-Link
Sensor length and distance to thread: 69 mm|12.9 mm
Price:
€248,35
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
