Short Specifications

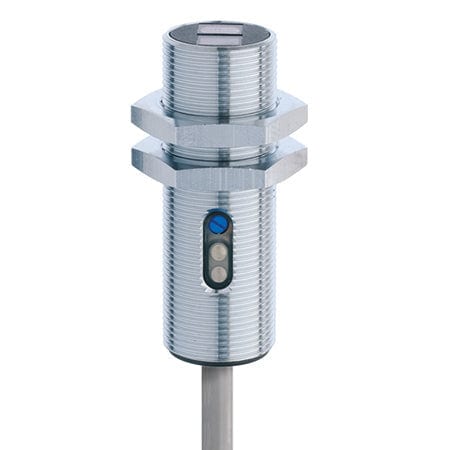

LHK-1180-301
| Operating range | 10...120 mm |
| Switching frequency max. | 500 Hz |
| Supply voltage | 10...36 |
| Polarity | NPN |
| Output | Light-on |
| Sensitivity adjustment | 3/4-turn pot. |
| Connection | PVC, 2 m, 3 wire |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+55°C |
| Light source | LED, red 660 nm |
| Interface | Standard output |
| Operating principle | Background suppression |
| Sensing range max. | 0 |
Downloads
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
