Short Specifications

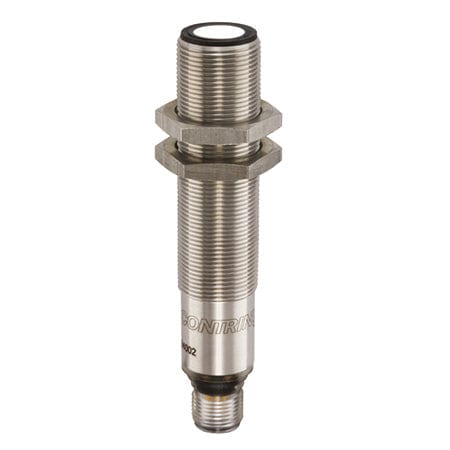

USR-M18MS-TLS-301
| Operating range | 0...2000 mm |
| Switching frequency max. | 2 Hz |
| Supply voltage | 10...30 |
| Product Range | Standard body |
| Polarity | NPN |
| Output | NO (default)/NC |
| Connection | M12 4-pin |
| Housing size [mm] | M18 |
| Enclosure rating | IP 67 |
| Housing material | Stainless-steel V2A |
| Temperature range | -20...+70°C |
| Interface | Standard output |
| Operating principle | Reflex |
Downloads
| Type | Format |
| Datasheet |
|
| Operating manual |
|
| CE certificate |
|
| UKCA certificate |
|
Estimated Delivery Time 2-3 weeks
