Short Specifications

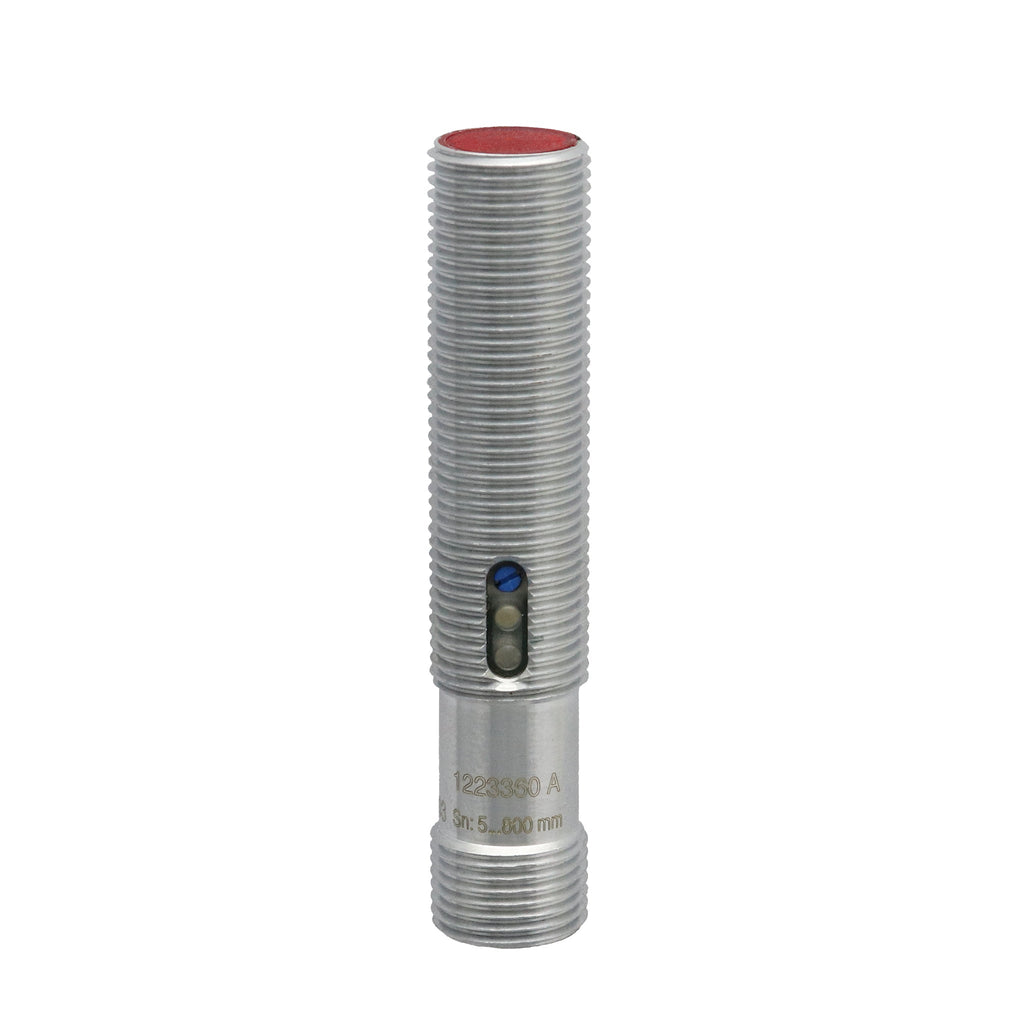

LTR-M12MA-PMK-101
| Operating range | 6...650 mm |
| Switching frequency max. | 1500 Hz |
| Supply voltage | 10...30 |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Sensitivity adjustment | 3/4-turn pot. |
| Connection | PVC, 2 m, 4 wire + 0 |
| Housing size [mm] | M12 |
| Enclosure rating | IP 67 |
| Housing material | Chrome-plated brass |
| Temperature range | -25...+65°C |
| Light source | LED, red 645 nm |
| Interface | Standard output |
| Operating principle | Diffuse |
| Sensing range max. | 5...800 mm |
Downloads
| Type | Format |
| Datasheet |
|
| CE certificate |
|
| UKCA certificate |
|
| UL certificate |
|
Estimated Delivery Time 2-3 weeks
