Short Specifications

LTK-1180L-101-516

Operating range 40...250 mm
Switching frequency max. 5000 Hz
Supply voltage 10...36
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment 3-turn pot.
Connection PVC, 2 m, 4 wire
Housing size [mm] M18
Enclosure rating IP 67
Housing material Stainless-steel V2A
Temperature range -10...+50°C
Light source Laser class 2, red 660 nm
Interface Standard output
Operating principle Diffuse
Sensing range max. 0

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

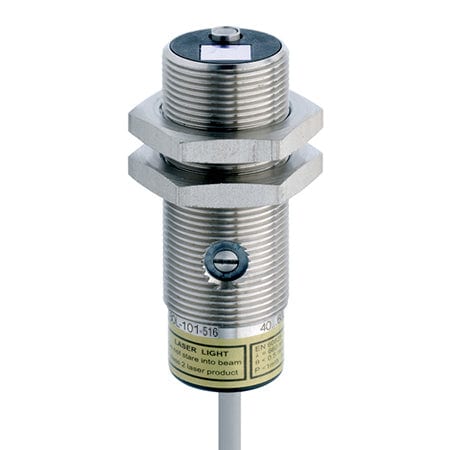

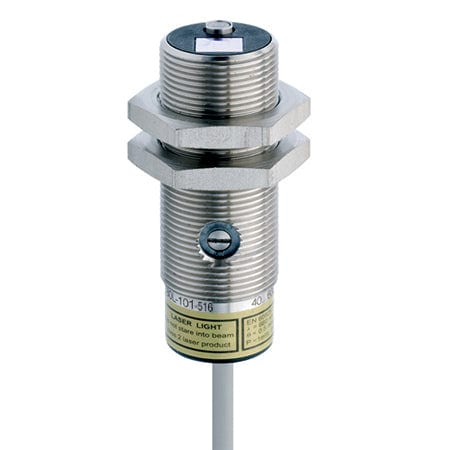

Standard Diffuse M18 40...250 mm Stainless steel V2A 3 turn pot. Laser class 2, red 660 nm

SKU: LTK-1180L-101-516

Connection: PVC, 2 m, 4 wire
Output: Light-on + Dark-on
Polarity and Mounting Type: NPN | Straight
Price:
Sale price€170,30
Stock:
Re-stocking soon

Estimated Delivery Time 2-3 weeks
