Short Specifications

LRK-4150-101

Operating range 4000 mm
Switching frequency max. 1500 Hz
Supply voltage 10...36
Polarity NPN
Output Light-on + Dark-on
Sensitivity adjustment 3-turn pot.
Connection PVC, 2 m, 4 wire
Housing size [mm] 40 x 50
Enclosure rating IP 67
Housing material PBTP
Temperature range -5...+55°C
Light source LED, red 680 nm
Interface Standard output
Operating principle Reflex
Sensing range max. 0

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

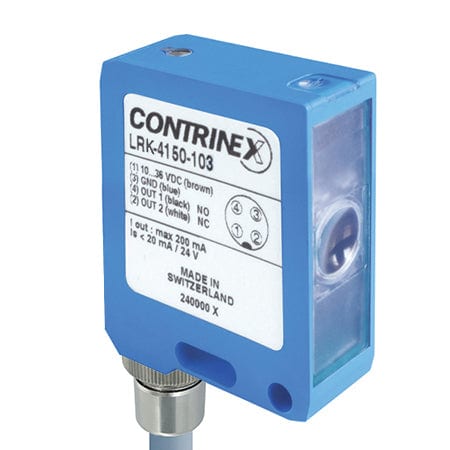

Standard Reflex 40 x 50 4000 mm PBTP 3 turn pot. LED, red 680 nm

SKU: LRK-4150-101

Connection: PVC, 2 m, 4 wire
Output: Light-on + Dark-on
Polarity: NPN
Price:
Sale price€88,10
Stock:
In stock

Estimated Delivery Time 2-3 weeks
