Short Specifications

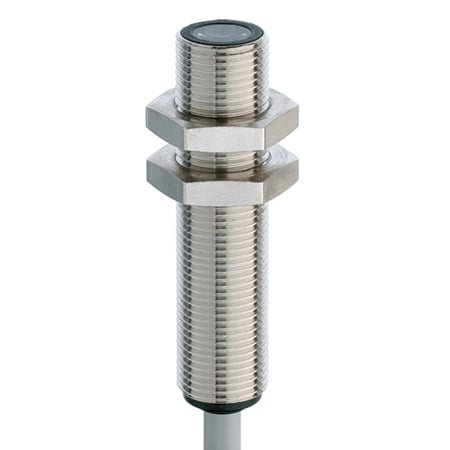

LLK-1120-200

Operating range 10000 mm
Switching frequency max. 1000 Hz
Supply voltage 10...36
Polarity Emitter
Output Test input
Sensitivity adjustment No
Connection PVC, 2 m, 3 wire
Housing size [mm] M12
Enclosure rating IP 67
Housing material Chrome-plated brass
Temperature range -25...+55°C
Light source LED, red 660 nm
Operating principle Through-beam
Sensing range max. 0

Downloads

Type Format
Datasheet pdf
CE certificate pdf
UKCA certificate pdf

3D CAD Library

Standard Through beam M12 10000 mm Chrome plated brass No LED, red 660 nm

SKU: LLK-1120-200

Contrinex Photoelectrics Sensor Standard-Through-beam-M12-10000-mm-Chrome-plated-brass-No-LED-red-660-nm LLS-1120-202

Connection: PVC, 2 m, 3 wire
Output: Test input
Polarity: Emitter
Price:
€49,61
Stock:
Re-stocking soon

Secure Checkout

Visa Mastercard American Express Apple Pay Google Pay Shop Pay Union Pay

Estimated Delivery Time 2-3 weeks
